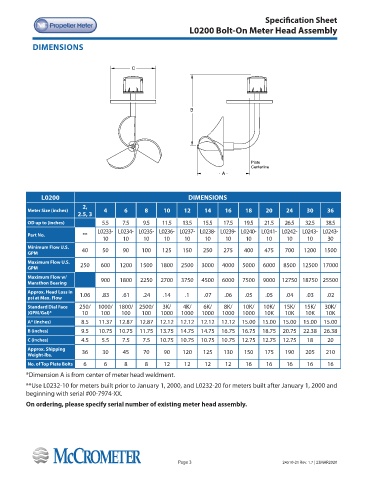

Specification Sheet
L0200 Bolt-On Meter Head Assembly

DIMENSIONS

C

B

Plate
Centerline
A

L0200 DIMENSIONS
2,
Meter Size (inches) 4 6 8 10 12 14 16 18 20 24 30 36
2.5, 3
OD up to (inches) 5.5 7.5 9.5 11.5 13.5 15.5 17.5 19.5 21.5 26.5 32.5 38.5
L0233- L0234- L0235- L0236- L0237- L0238- L0239- L0240- L0241- L0242- L0243- L0243-
Part No. **
10 10 10 10 10 10 10 10 10 10 10 30
Minimum Flow U.S. 40 50 90 100 125 150 250 275 400 475 700 1200 1500
GPM
Maximum Flow U.S. 250 600 1200 1500 1800 2500 3000 4000 5000 6000 8500 12500 17000
GPM
Maximum Flow w/ 900 1800 2250 2700 3750 4500 6000 7500 9000 12750 18750 25500
Marathon Bearing
Approx. Head Loss in 1.06 .83 .61 .24 .14 .1 .07 .06 .05 .05 .04 .03 .02
psi at Max. Flow
Standard Dial Face 250/ 1000/ 1800/ 2500/ 3K/ 4K/ 6K/ 8K/ 10K/ 10K/ 15K/ 15K/ 30K/
(GPM/Gal)* 10 100 100 100 1000 1000 1000 1000 1000 10K 10K 10K 10K
A* (inches) 8.5 11.37 12.87 12.87 12.12 12.12 12.12 12.12 15.00 15.00 15.00 15.00 15.00
B (inches) 9.5 10.75 10.75 11.75 13.75 14.75 14.75 16.75 16.75 18.75 20.75 22.38 26.38
C (inches) 4.5 5.5 7.5 7.5 10.75 10.75 10.75 10.75 12.75 12.75 12.75 18 20
Approx. Shipping 36 30 45 70 90 120 125 130 150 175 190 205 210
Weight-lbs.
No. of Top Plate Bolts 6 6 8 8 12 12 12 12 16 16 16 16 16
*Dimension A is from center of meter head weldment.

**Use L0232-10 for meters built prior to January 1, 2000, and L0232-20 for meters built after January 1, 2000 and
beginning with serial #00-7974-XX.
On ordering, please specify serial number of existing meter head assembly.

Page 3 24510-21 Rev. 1.7 | 23MAR2020
