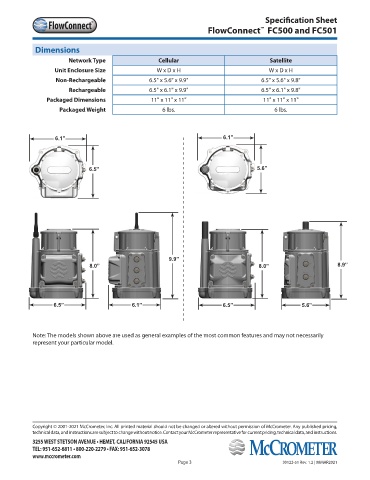

Specification Sheet
FlowConnect FC500 and FC501
™
Dimensions
Network Type Cellular Satellite
Unit Enclosure Size W x D x H W x D x H
Non-Rechargeable 6.5" x 5.6" x 9.9" 6.5" x 5.6" x 9.8"
Rechargeable 6.5" x 6.1" x 9.9" 6.5" x 6.1" x 9.8"
Packaged Dimensions 11" x 11" x 11" 11" x 11" x 11"
Packaged Weight 6 lbs. 6 lbs.
6.1” 6.1”
6.5” 5.6”
9.9”
8.0” 8.0” 8.9”
6.5” 6.1” 6.5” 5.6”
Note: The models shown above are used as general examples of the most common features and may not necessarily
represent your particular model.
