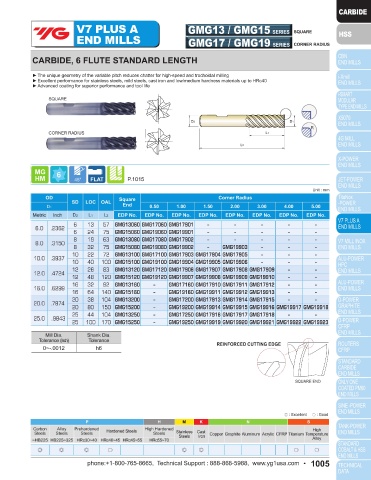

V7 PLUS A GMG12 / GMG14 SERIES SQUARE V7 PLUS A GMG13 / GMG15 SERIES SQUARE

END MILLS END MILLS
GMG16 / GMG18 SERIES CORNER RADIUS GMG17 / GMG19 SERIES CORNER RADIUS

CARBIDE, 6 FLUTE STANDARD LENGTH CARBIDE, 6 FLUTE STANDARD LENGTH

► The unique geometry of the variable pitch reduces chatter for high-speed and trochoidal milling ► The unique geometry of the variable pitch reduces chatter for high-speed and trochoidal milling
► Excellent performance for stainless steels, mild steels, cast iron and low/medium hardness materials up to HRc40 ► Excellent performance for stainless steels, mild steels, cast iron and low/medium hardness materials up to HRc40
► Advanced coating for superior performance and tool life ► Advanced coating for superior performance and tool life

SQUARE SQUARE

R R
CORNER RADIUS CORNER RADIUS

45° P.1015 45° P.1015
Unit : mm Unit : mm
OD Square Corner Radius OD Square Corner Radius
SD LOC OAL SD LOC OAL
D1 End 0.50 1.00 1.50 2.00 3.00 4.00 5.00 D1 End 0.50 1.00 1.50 2.00 3.00 4.00 5.00
Metric Inch D2 L1 L2 EDP No. EDP No. EDP No. EDP No. EDP No. EDP No. EDP No. EDP No. Metric Inch D2 L1 L2 EDP No. EDP No. EDP No. EDP No. EDP No. EDP No. EDP No. EDP No.
6 13 57 GMG12060 GMG16060 GMG16901 – – – – – 6 13 57 GMG13060 GMG17060 GMG17901 – – – – –
6.0 .2362 6.0 .2362
6 24 75 GMG14060 GMG18060 GMG18901 – – – – – 6 24 75 GMG15060 GMG19060 GMG19901 – – – – –
8 19 63 GMG12080 GMG16080 GMG16902 – – – – – 8 19 63 GMG13080 GMG17080 GMG17902 – – – – –
8.0 .3150 8.0 .3150
8 32 75 GMG14080 GMG18080 GMG18902 – GMG18903 – – – 8 32 75 GMG15080 GMG19080 GMG19902 – GMG19903 – – –
10 22 72 GMG12100 GMG16100 GMG16903 GMG16904 GMG16905 – – – 10 22 72 GMG13100 GMG17100 GMG17903 GMG17904 GMG17905 – – –
10.0 .3937 10.0 .3937
10 40 100 GMG14100 GMG18100 GMG18904 GMG18905 GMG18906 – – – 10 40 100 GMG15100 GMG19100 GMG19904 GMG19905 GMG19906 – – –
12 26 83 GMG12120 GMG16120 GMG16906 GMG16907 GMG16908 GMG16909 – – 12 26 83 GMG13120 GMG17120 GMG17906 GMG17907 GMG17908 GMG17909 – –
12.0 .4724 12.0 .4724
12 48 120 GMG14120 GMG18120 GMG18907 GMG18908 GMG18909 GMG18910 – – 12 48 120 GMG15120 GMG19120 GMG19907 GMG19908 GMG19909 GMG19910 – –
16 32 92 GMG12160 – GMG16160 GMG16910 GMG16911 GMG16912 – – 16 32 92 GMG13160 – GMG17160 GMG17910 GMG17911 GMG17912 – –
16.0 .6299 16.0 .6299
16 64 140 GMG14160 – GMG18160 GMG18911 GMG18912 GMG18913 – – 16 64 140 GMG15160 – GMG19160 GMG19911 GMG19912 GMG19913 – –
20 38 104 GMG12200 – GMG16200 GMG16913 GMG16914 GMG16915 – – 20 38 104 GMG13200 – GMG17200 GMG17913 GMG17914 GMG17915 – –
20.0 .7874 20.0 .7874
20 80 150 GMG14200 – GMG18200 GMG18914 GMG18915 GMG18916 GMG18917 GMG18918 20 80 150 GMG15200 – GMG19200 GMG19914 GMG19915 GMG19916 GMG19917 GMG19918
25 44 104 GMG12250 – GMG16250 GMG16916 GMG16917 GMG16918 – – 25 44 104 GMG13250 – GMG17250 GMG17916 GMG17917 GMG17918 – –
25.0 .9843 25.0 .9843
25 100 170 GMG14250 – GMG18250 GMG18919 GMG18920 GMG18921 GMG18922 GMG18923 25 100 170 GMG15250 – GMG19250 GMG19919 GMG19920 GMG19921 GMG19922 GMG19923
Mill Dia. Shank Dia. Mill Dia. Shank Dia.
Tolerance (inch) Tolerance Tolerance (inch) Tolerance
0~-.0012 h6 REINFORCED CUTTING EDGE 0~-.0012 h6 REINFORCED CUTTING EDGE

SQUARE END SQUARE END

◎ : Excellent ○ : Good ◎ : Excellent ○ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Iron
Steels
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ○ ◎ ◎ ○ ○ ◎ ◎ ◎ ○ ◎ ◎ ○ ○
