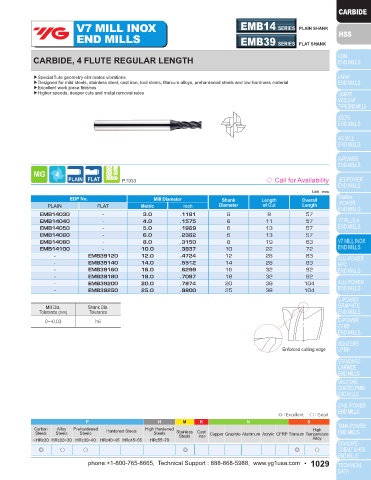

V7 MILL INOX EMB43 SERIES PLAIN SHANK V7 MILL INOX EMB14 SERIES PLAIN SHANK
END MILLS EMB44 SERIES FLAT SHANK END MILLS EMB39 SERIES FLAT SHANK

CARBIDE, 4 FLUTE SHORT LENGTH CORNER RADIUS CARBIDE, 4 FLUTE REGULAR LENGTH

▶Special flute geometry eliminates vibrations ▶Special flute geometry eliminates vibrations
▶Designed for mild steels, stainless steel, cast iron, tool steels, titanium alloys, prehardened steels and low hardness material ▶Designed for mild steels, stainless steel, cast iron, tool steels, titanium alloys, prehardened steels and low hardness material
▶Excellent work piece finishes ▶Excellent work piece finishes
▶Higher speeds, deeper cuts and metal removal rates ▶Higher speeds, deeper cuts and metal removal rates

R
↙

P.1033 ◇ Call for Availability P.1033 ◇ Call for Availability

Unit : mm Unit : mm
EDP No. Corner Radius Mill Diameter Shank Length Overall EDP No. Mill Diameter Shank Length Overall
PLAIN FLAT R Metric Inch Diameter of Cut Length PLAIN FLAT Metric Inch Diameter of Cut Length
EMB43030 EMB44030 R0.3 3.0 .1181 6 7 54 EMB14030 - 3.0 .1181 6 8 57
EMB43040 EMB44040 R0.3 4.0 .1575 6 8 54 EMB14040 - 4.0 .1575 6 11 57
EMB43050 EMB44050 R0.3 5.0 .1969 6 10 54 EMB14050 - 5.0 .1969 6 13 57
EMB43060 EMB44060 R0.5 6.0 .2362 6 10 54 EMB14060 - 6.0 .2362 6 13 57
EMB43080 EMB44080 R0.5 8.0 .3150 8 12 58 EMB14080 - 8.0 .3150 8 19 63
EMB43100 EMB44100 R0.5 10.0 .3937 10 14 66 EMB14100 - 10.0 .3937 10 22 72
EMB43120 EMB44120 R0.7 12.0 .4724 12 16 73 - EMB39120 12.0 .4724 12 26 83
EMB43140 EMB44140 R0.7 14.0 .5512 14 18 75 - EMB39140 14.0 .5512 14 26 83
EMB43160 EMB44160 R1.0 16.0 .6299 16 22 82 - EMB39160 16.0 .6299 16 32 92
EMB43180 EMB44180 R1.0 18.0 .7087 18 24 84 - EMB39180 18.0 .7087 18 32 92
EMB43200 EMB44200 R1.0 20.0 .7874 20 26 92 - EMB39200 20.0 .7874 20 38 104
- EMB39250 25.0 .9800 25 38 104
Mill Dia. Shank Dia.
Tolerance (mm) Tolerance Mill Dia. Shank Dia.
Tolerance (mm) Tolerance
0~-0.03 h6
0~-0.03 h6

Enforced cutting edge

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ○ ○ ◎ ◎ ○ ◎ ○ ○ ◎ ◎ ○
