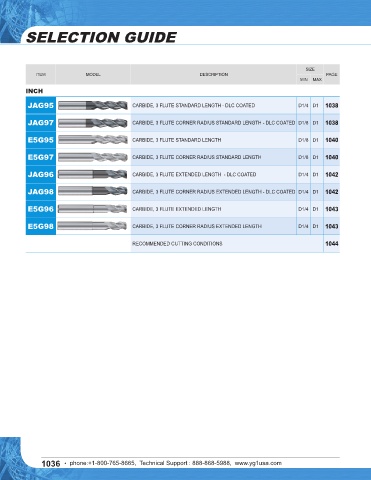

SELECTION GUIDE SOLID CARBIDE ALU-POWER HPC END MILLS
◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
MIN MAX Alloy
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70
INCH
JAG95 CARBIDE, 3 FLUTE STANDARD LENGTH - DLC COATED D1/4 D1 1038 ◎
JAG97 CARBIDE, 3 FLUTE CORNER RADIUS STANDARD LENGTH - DLC COATED D1/8 D1 1038 ◎
E5G95 CARBIDE, 3 FLUTE STANDARD LENGTH D1/8 D1 1040 ◎
E5G97 CARBIDE, 3 FLUTE CORNER RADIUS STANDARD LENGTH D1/8 D1 1040 ◎
JAG96 CARBIDE, 3 FLUTE EXTENDED LENGTH - DLC COATED D1/4 D1 1042 ◎
JAG98 CARBIDE, 3 FLUTE CORNER RADIUS EXTENDED LENGTH - DLC COATED D1/4 D1 1042 ◎
E5G96 CARBIDE, 3 FLUTE EXTENDED LENGTH D1/4 D1 1043 ◎
E5G98 CARBIDE, 3 FLUTE CORNER RADIUS EXTENDED LENGTH D1/4 D1 1043 ◎
RECOMMENDED CUTTING CONDITIONS 1044
ALU-POWER
HPC
END MILLS
Scan QR Code Scan QR Code
to See Catalogue to See Catalogue
AEROSPACE SOLUTIONS COMPOSITE MATERIALS
