CARBIDE CARBIDE

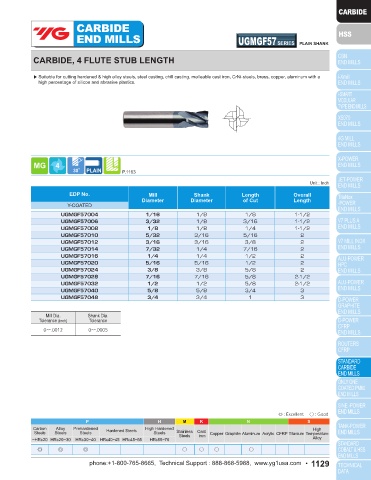

END MILLS E5244 SERIES PLAIN SHANK END MILLS UGMGF57 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE STUB LENGTH CARBIDE, 4 FLUTE STUB LENGTH

▶ Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a ▶ Suitable for cutting hardened & high alloy steels, steel casting, chill casting, malleable cast iron, CrNi-steels, brass, copper, aluminum with a
high percentage of silicon and abrasive plastics. high percentage of silicon and abrasive plastics.

P.1165 P.1163
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall
Shank
Mill
UNCOATED TiN COATED TiCN COATED YG:TYLON F YG:TYLON E Diameter Diameter of Cut Length EDP No. Diameter Diameter Length Overall
Length
of Cut
30554 30554TN 30554TC 30554TF 30554TE 1/16 1/8 1/8 1-1/2 Y-COATED
30556 30556TN 30556TC 30556TF 30556TE 3/32 1/8 3/16 1-1/2 UGMGF57004 1/16 1/8 1/8 1-1/2
30558 30558TN 30558TC 30558TF 30558TE 1/8 1/8 1/4 1-1/2 UGMGF57006 3/32 1/8 3/16 1-1/2
30561 30561TN 30561TC 30561TF 30561TE 5/32 3/16 5/16 2 UGMGF57008 1/8 1/8 1/4 1-1/2
30565 30565TN 30565TC 30565TF 30565TE 3/16 3/16 3/8 2 UGMGF57010 5/32 3/16 5/16 2
30570 30570TN 30570TC 30570TF 30570TE 7/32 1/4 7/16 2 UGMGF57012 3/16 3/16 3/8 2
30573 30573TN 30573TC 30573TF 30573TE 1/4 1/4 1/2 2 UGMGF57014 7/32 1/4 7/16 2
30579 30579TN 30579TC 30579TF 30579TE 5/16 5/16 1/2 2 UGMGF57016 1/4 1/4 1/2 2
30584 30584TN 30584TC 30584TF 30584TE 3/8 3/8 5/8 2 UGMGF57020 5/16 5/16 1/2 2
30588 30588TN 30588TC 30588TF 30588TE 7/16 7/16 5/8 2-1/2 UGMGF57024 3/8 3/8 5/8 2
30593 30593TN 30593TC 30593TF 30593TE 1/2 1/2 5/8 2-1/2 UGMGF57028 7/16 7/16 5/8 2-1/2
30595 30595TN 30595TC 30595TF 30595TE 5/8 5/8 3/4 3 UGMGF57032 1/2 1/2 5/8 2-1/2
30598 30598TN 30598TC 30598TF 30598TE 3/4 3/4 1 3 UGMGF57040 5/8 5/8 3/4 3
UGMGF57048 3/4 3/4 1 3
Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
Mill Dia. Shank Dia.
0~-.0012 0~-.0005 Tolerance (inch) Tolerance
0~-.0012 0~-.0005

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○ ○
