Page 1195 - YG 2019

TANK-POWER TANK-POWER

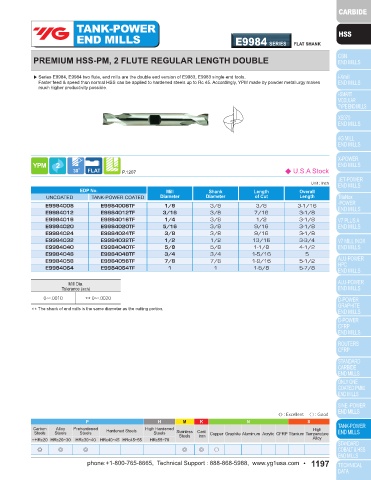

END MILLS E9983 SERIES FLAT SHANK END MILLS E9984 SERIES FLAT SHANK

PREMIUM HSS-PM, 2 FLUTE REGULAR LENGTH PREMIUM HSS-PM, 2 FLUTE REGULAR LENGTH DOUBLE

▶ Faster feed & speed than normal HSS can be applied to hardened steels up to Rc 45. Accordingly, YPM made by powder metallurgy makes ▶ Series E9984, E9984 two flute, end mills are the double end version of E9983, E9983 single-end tools.
much higher productivity possible. Faster feed & speed than normal HSS can be applied to hardened steels up to Rc 45. Accordingly, YPM made by powder metallurgy makes
much higher productivity possible.

P.1207 ◆ U.S.A Stock P.1207 ◆ U.S.A Stock
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
UNCOATED TANK-POWER COATED Diameter Diameter of Cut Length UNCOATED TANK-POWER COATED Diameter Diameter of Cut Length
E9983008 E9983008TF 1/8 3/8 3/8 2-5/16 E9984008 E9984008TF 1/8 3/8 3/8 3-1/16
E9983012 E9983012TF 3/16 3/8 7/16 2-5/16 E9984012 E9984012TF 3/16 3/8 7/16 3-1/8
E9983016 E9983016TF 1/4 3/8 1/2 2-5/16 E9984016 E9984016TF 1/4 3/8 1/2 3-1/8
E9983020 E9983020TF 5/16 3/8 9/16 2-5/16 E9984020 E9984020TF 5/16 3/8 9/16 3-1/8
E9983024 E9983024TF 3/8 3/8 9/16 2-5/16 E9984024 E9984024TF 3/8 3/8 9/16 3-1/8
E9983032 E9983032TF 1/2 1/2 1 3 E9984032 E9984032TF 1/2 1/2 13/16 3-3/4
E9983040 E9983040TF 5/8 5/8 1-5/16 3-7/16 E9984040 E9984040TF 5/8 5/8 1-1/8 4-1/2
E9983048 E9983048TF 3/4 3/4 1-5/16 3-7/16 E9984048 E9984048TF 3/4 3/4 1-5/16 5
E9983056 E9983056TF 7/8 7/8 1-1/2 3-3/4 E9984056 E9984056TF 7/8 7/8 1-9/16 5-1/2
E9983064 E9983064TF 1 1 1-5/8 4-1/8 E9984064 E9984064TF 1 1 1-5/8 5-7/8

Mill Dia. Mill Dia.
Tolerance (inch) Tolerance (inch)
0~+.0010 ** 0~+.0015 0~-.0010 ** 0~-.0020
** The shank of end mills is the same diameter as the cutting portion. ** The shank of end mills is the same diameter as the cutting portion.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ◎ ◎ ◎ ○ ◎ ◎ ◎ ◎ ◎ ○
1196 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1197
