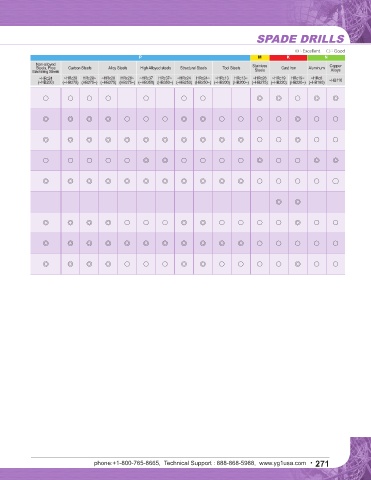

SELECTION GUIDE SPADE DRILLS

◎ : Excellent ◯ : Good
P M K N
Non-alloyed Stainless Copper
SIZE Steels, Free Carbon Steels Alloy Steels High Alloyed steels Structural Steels Tool Steels Steels Cast lron Aluminum Alloys
ITEM MODEL DESCRIPTION PAGE Machining Steels
HRc19~
~HRc8
~HRc13
~HRc37
~HRc24
HRc24~
~HRc19
HRc28~
~HRc28
HRc28~
~HRc28
~HRc28
HRc13~
~HRc24
HRc37~
MIN MAX (~HB250) (~HB275) (HB275~) (~HB275) (HB275~) (~HB350) (HB350~) (~HB250) (HB250~) (~HB200) (HB200~) (~HB275) (~HB220) (HB220~) (~HB180) ~HB110
SERIES .7031 4.5000
1~8 SPADE DRILL INSERTS - HSS (M4) (#1) (#8) 272 ○ ○ ○ ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎
SERIES .3740 4.5000
Y,Z,0,1~8 SPADE DRILL INSERTS - SUPER COBALT (T15) (#Y) (#8) 276 ◎ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○ ○ ◎ ○ ○
SERIES .3740 1.3780
Y,Z,0,1,2 SPADE DRILL INSERTS - PREMIUM COBALT (M48) (#Y) (#2) 283 ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ○ ○ ◎ ○ ○
SERIES .3740 1.8750
Y,Z,0,1~3 CARBIDE BLADE INSERTS C2 (K20) (#Y) (#3) 286 ○ ○ ○ ○ ○ ◎ ◎ ○ ○ ○ ○ ◎ ○ ○ ◎ ◎
SERIES .3740 1.8750
Y,Z,0,1~3 CARBIDE BLADE INSERTS C5 (P40) (#Y) (#3) 286 ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ○ ○ ○ ○ ◯
SERIES .3740 1.3780
Y,Z,0,1~2 CARBIDE BLADE INSERTS C3 (K10) (#Y) (#2) 286 ◎ ◎
SERIES .3740 4.5000
Y,Z,0,1~8 SM-POINT SPADE DRILL INSERTS - SUPER COBALT (T15) (#Y) (#8) 292 ◎ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○ ○ ◎ ○ ○

SERIES .3740 1.8750
Y,Z,0,1~3 SM-POINT SPADE DRILL INSERTS - CARBIDE C5 (P40) (#Y) (#3) 296 ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ○ ○ ○ ○ ○
SERIES .3750 1.3750
Y,Z,0,1,2 SPADE DRILL FLAT BOTTOM INSERTS - SUPER COBALT (T15) (#Y) (#2) 298 ◎ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○ ○ ◎ ○ ○

STRAIGHT
SHANK STRAIGHT SHANK HOLDER, STRAIGHT FLUTE 299

TAPER
SHANK TAPER SHANK HOLDER, STRAIGHT FLUTE / HELICAL FLUTE 303

FLANGED
SHANK FLANGED STRAIGHT SHANK HOLDER, STRAIGHT FLUTE 305

HOLDER ACCESSORIES 307

RECOMMENDED CUTTING CONDITIONS 308
