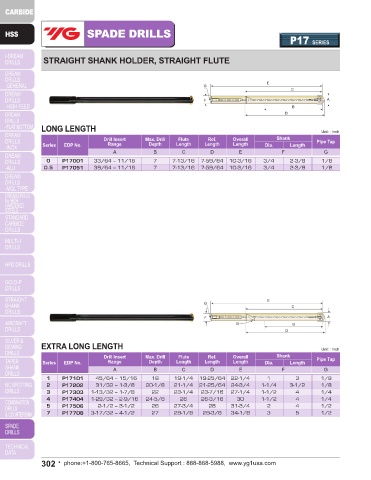

Page 302 - YG 2019
P. 302
SPADE DRILLS SPADE DRILLS P01 SERIES
P17 SERIES P08 SERIES
STRAIGHT SHANK HOLDER, STRAIGHT FLUTE TAPER SHANK HOLDER, STRAIGHT FLUTE / HELICAL FLUTE
E E
G
C G C
F A A
B
D F H B
D
LONG LENGTH Unit : Inch SHORT LENGTH Unit : Inch
Drill Insert Max. Drill Flute Ref. Overall Shank Pipe Tap Drill Insert Max. Drill Flute Ref. Overall MT Pipe Tap RCI
Series EDP No. Range Depth Length Length Length Dia. Length Series EDP No. Range Depth Length Length Length
A B C D E F G A B C D E F G H
0 P17001 33/64 – 11/16 7 7-13/16 7-59/64 10-3/16 3/4 2-3/8 1/8 Y P01Y02 3/8 – 27/64 1-1/4 2-1/32 3-15/32 6-5/16 #2 1/16 PR1030
0.5 P17051 39/64 – 11/16 7 7-13/16 7-59/64 10-3/16 3/4 2-3/8 1/8 Z P01Z02 7/16 – 1/2 1-1/4 2-1/32 3-15/32 6-5/16 #2 1/16 PR1030
0 P01002 33/64 – 11/16 1-3/8 2-3/16 3-41/64 6-15/32 #2 1/16 PR1030
0.5 P01052 39/64 – 11/16 1-3/8 2-3/16 3-41/64 6-15/32 #2 1/16 PR1030
1 P01103 45/64 – 15/16 2-3/4 3-7/8 5-39/64 9-5/32 #3 1/8 PR1031
P01104 45/64 – 15/16 2-3/4 3-7/8 5-43/64 10-5/32 #4 1/8 PR1031
P01153 55/64 – 15/16 2-3/4 3-7/8 5-39/64 9-5/32 #3 1/8 PR1031
1.5
P01154 55/64 – 15/16 2-3/4 3-7/8 5-43/64 10-5/32 #4 1/8 PR1031
2 P01203 31/32 – 1-3/8 3-3/8 4-1/2 6-15/64 9-25/32 #3 1/8 PR1031
P01204 31/32 – 1-3/8 3-3/8 4-1/2 6-19/64 10-25/32 #4 1/8 PR1031
2.5 P01253 1-3/16 – 1-3/8 3-3/8 4-1/2 6-15/64 9-25/32 #3 1/8 PR1031
P01254 1-3/16 – 1-3/8 3-3/8 4-1/2 6-37/64 11-1/16 #4 1/4 PR1042
3 P01304 1-13/32 – 1-7/8 4-3/4 6 8-1/8 12-9/16 #4 1/4 PR1042
P01305 1-13/32 – 1-7/8 4-3/4 6 8-1/8 13-13/16 #5 1/4 PR1043
P01404 1-29/32 – 2-9/16 5-1/8 6-1/2 8-5/8 13-1/16 #4 1/4 PR1042
4
P01405 1-29/32 – 2-9/16 5-1/8 6-1/2 8-5/8 14-5/16 #5 1/4 PR1043
5-6 P01505 2-1/2 – 3-1/2 6-3/4 8-1/2 11-5/16 16-15/16 #5 1/2 PR1054
7-8 P01705 3-17/32 – 4-1/2 6-3/4 8-7/8 11-11/16 17-5/16 #5 1/2 PR1054
▶ You can also apply RCI(Rotary Coolant Inducer) for internal cooling. (See page 307)
E
G E
C
G C
F A
G B A
D B
F H
D
EXTRA LONG LENGTH Unit : Inch INTERMEDIATE LENGTH Unit : Inch
Drill Insert Max. Drill Flute Ref. Overall Shank Pipe Tap Drill Insert Max. Drill Flute Ref. Overall MT Pipe Tap RCI
Series EDP No. Range Depth Length Length Length Dia. Length Series EDP No. Range Depth Length Length Length
A B C D E F G A B C D E F G H
1 P17101 45/64 – 15/16 18 19-1/4 19-25/64 22-1/4 1 3 1/8 1 P08103 45/64 – 15/16 4-3/4 5-7/8 7-39/64 11-5/32 #3 1/8 PR1031
2 P17202 31/32 – 1-3/8 20-1/8 21-1/4 21-25/64 24-3/4 1-1/4 3-1/2 1/8 1.5 P08153 55/64 – 15/16 4-3/4 5-7/8 7-39/64 11-5/32 #3 1/8 PR1031
3 P17303 1-13/32 – 1-7/8 22 23-1/4 23-7/16 27-1/4 1-1/2 4 1/4 2 P08204 31/32 – 1-3/8 5-3/8 6-1/2 8-19/64 12-25/32 #4 1/8 PR1031
4 P17404 1-29/32 – 2-9/16 24-5/8 26 26-3/16 30 1-1/2 4 1/4 2.5 P08254 1-3/16 – 1-3/8 5-3/8 6-1/2 8-37/64 13-1/16 #4 1/4 PR1042
5 P17506 2-1/2 – 3-1/2 26 27-3/4 28 31-3/4 2 4 1/2 ▶ You can also apply RCI(Rotary Coolant Inducer) for internal cooling. (See page 307)
7 P17708 3-17/32 – 4-1/2 27 29-1/8 29-3/8 34-1/8 3 5 1/2
302 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 303
