THREADING TOOLS APPLICATION TABLE

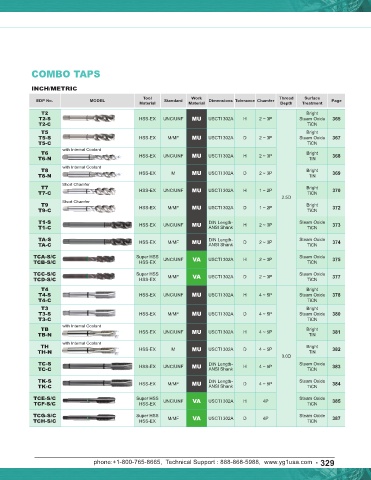

SOLID CARBIDE THREAD MILL COMBO TAPS

INCH INCH/METRIC

Tool Work Thread Surface
EDP No. MODEL Description Page EDP No. MODEL Standard Dimensions Tolerance Chamfer Page
Material Material Depth Treatment
T2 Bright
Solid Carbide Thread mill
TE 357 T2-S HSS-EX UNC/UNF MU USCTI 302A H 2 ~ 3P Steam Oxide 365
for Unified Internal Threads - ANSI B 1.1 T2-C TiCN
T5 Bright
Solid Carbide Thread mill T5-S HSS-EX M/MF MU USCTI 302A D 2 ~ 3P Steam Oxide 367
TD 358
for Metric Internal Threads - DIN 13 T5-C TiCN
T6 Bright
TF Solid Carbide Thread mill for Unified Internal Threads T6-N HSS-EX UNC/UNF MU USCTI 302A H 2 ~ 3P TiN 368
TG - ANSI B 1.20.1(NPT) / ANSI B1.20.3(NPTF) 359
T8 MU Bright
T8-N HSS-EX M USCTI 302A D 2 ~ 3P TiN 369

T7 Bright
T7-C HSS-EX UNC/UNF MU USCTI 302A H 1 ~ 2P TiCN 370
2.5D
T9 Bright
T9-C HSS-EX M/MF MU USCTI 302A D 1 ~ 2P TiCN 372

T1-S MU DIN Length- Steam Oxide
T1-C HSS-EX UNC/UNF ANSI Shank H 2 ~ 3P TiCN 373
TA-S DIN Length- Steam Oxide
TA-C HSS-EX M/MF MU ANSI Shank D 2 ~ 3P TiCN 374
TCA-S/C Super HSS Steam Oxide
TCB-S/C HSS-EX UNC/UNF VA USCTI 302A H 2 ~ 3P TiCN 375

TCC-S/C Super HSS VA Steam Oxide
TCD-S/C HSS-EX M/MF USCTI 302A D 2 ~ 3P TiCN 377
T4 Bright
T4-S HSS-EX UNC/UNF MU USCTI 302A H 4 ~ 5P Steam Oxide 378
T4-C TiCN
T3 Bright
T3-S HSS-EX M/MF MU USCTI 302A D 4 ~ 5P Steam Oxide 380
T3-C TiCN
TB MU Bright
TB-N HSS-EX UNC/UNF USCTI 302A H 4 ~ 5P TiN 381
TH MU Bright
TH-N HSS-EX M USCTI 302A D 4 ~ 5P TiN 382
3.0D
TC-S DIN Length- Steam Oxide
TC-C HSS-EX UNC/UNF MU ANSI Shank H 4 ~ 5P TiCN 383

TK-S MU DIN Length- Steam Oxide
TK-C HSS-EX M/MF ANSI Shank D 4 ~ 5P TiCN 384
TCE-S/C Super HSS Steam Oxide
TCF-S/C HSS-EX UNC/UNF VA USCTI 302A H 4P TiCN 385
TCG-S/C Super HSS Steam Oxide
TCH-S/C HSS-EX M/MF VA USCTI 302A D 4P TiCN 387

328 phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com 329
