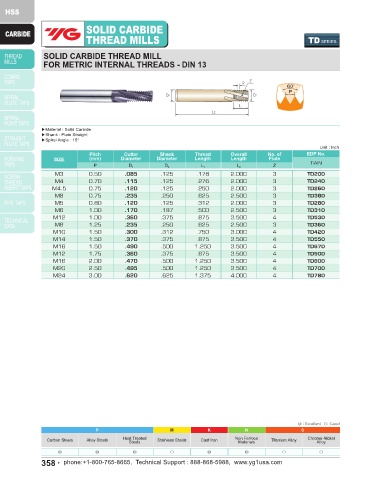

SOLID CARBIDE SOLID CARBIDE

THREAD MILLS TD SERIES THREAD MILLS TF/TG SERIES

SOLID CARBIDE THREAD MILL SOLID CARBIDE THREAD MILL
FOR METRIC INTERNAL THREADS - DIN 13 FOR UNIFIED INTERNAL THREADS - ANSI B 1.20.1(NPT) / ANSI B1.20.3(NPTF)

▶Material : Solid Carbide ▶Material : Solid Carbide
▶Shank : Plain Straight ▶Shank : Plain Straight
▶Spiral Angle : 15° ▶Spiral Angle : 15°
Unit : Inch
Pitch Cutter Shank Thread Overall No. of EDP No. TF Series (NPT) Unit : Inch
SIZE (mm) Diameter Diameter Length Length Flute
P D 1 D 2 L 1 L 2 Z TiAlN Pitch Cutter Shank Thread Overall No. of EDP No.
SIZE Diameter Diameter Length Length Flute
M3 0.50 .085 .125 .178 2.000 3 TD200 T.P.I D 1 D 2 L 1 L 2 Z TiAlN
M4 0.70 .115 .125 .276 2.000 3 TD240 1/16 & 1/8 27 .245 .250 .437 2.500 3 TF020
M4.5 0.75 .120 .125 .250 2.000 3 TD260 1/4 & 3/8 18 .305 .312 .625 3.000 4 TF400
M8 0.75 .235 .250 .625 2.500 3 TD380 1/4 & 3/8 18 .363 .375 .680 3.500 4 TF480
M5 0.80 .120 .125 .312 2.000 3 TD280 1/2 & 3/4 14 .495 .500 .875 3.500 4 TF560
M6 1.00 .170 .187 .500 2.500 3 TD310 1" - 2" 11.5 .620 .625 1.125 4.000 4 TF780
M12 1.00 .360 .375 .875 3.500 4 TD530 2-1/2" - 6" 8 .745 .750 1.500 5.000 4 TFF40
M8 1.25 .235 .250 .625 2.500 3 TD360
M10 1.50 .300 .312 .750 3.000 4 TD420
M14 1.50 .370 .375 .875 3.500 4 TD550
M18 1.50 .490 .500 1.250 3.500 4 TD670 TG Series (NPTF) Unit : Inch
M12 1.75 .360 .375 .875 3.500 4 TD500 Cutter Shank Thread Overall No. of EDP No.
M16 2.00 .470 .500 1.250 3.500 4 TD600 SIZE Pitch Diameter Diameter Length Length Flute TiAlN
M20 2.50 .495 .500 1.250 3.500 4 TD700 T.P.I D 1 D 2 L 1 L 2 Z
M24 3.00 .620 .625 1.375 4.000 4 TD780 1/16 & 1/8 27 .245 .250 .437 2.500 3 TG020
1/4 & 3/8 18 .305 .312 .625 3.000 4 TG400
1/2 & 3/4 14 .495 .500 .875 3.500 4 TG560
1" - 2" 11.5 .620 .625 1.125 4.000 4 TG780
2-1/2" - 6" 8 .745 .750 1.500 5.000 4 TGF40
