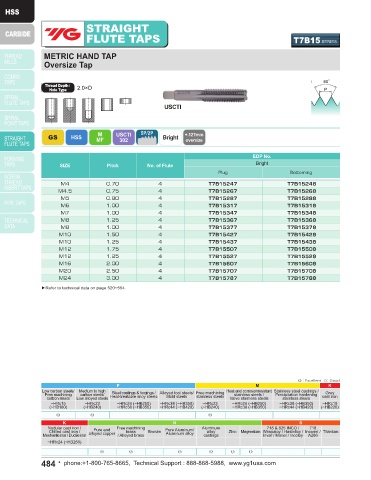

STRAIGHT STRAIGHT
FLUTE TAPS T7B15 SERIES FLUTE TAPS T7336 SERIES

METRIC HAND TAP LEFT HAND TAP
Oversize Tap

Thread Depth / 2.0×D Thread Depth / 2.0×D
Hole Type Hole Type

USCTI USCTI

M
GS HSS MF USCTI 5P/2P Bright +.127mm GS HSS UNC USCTI 5P/2P Bright
UNF
302
302
oversize
EDP No. Thread Per Inch EDP No.
SIZE Pitch No. of Flute Bright SIZE Limit No. of Flute Bright
Plug Bottoming UNC UNF Plug Bottoming
M4 0.70 4 T7B15247 T7B15248 #6 32 — H3 3 T7336247 T7336248
M4.5 0.75 4 T7B15267 T7B15268 #6 — 40 H2 3 T7336267 T7336268
M5 0.80 4 T7B15287 T7B15288 #8 32 — H3 4 T7336287 T7336288
M6 1.00 4 T7B15317 T7B15318 #8 — 36 H2 4 T7336307 T7336308
M7 1.00 4 T7B15347 T7B15348 #10 24 — H3 4 T7336327 T7336328
M8 1.25 4 T7B15367 T7B15368 #10 — 32 H3 4 T7336347 T7336348
M8 1.00 4 T7B15377 T7B15378 1/4 20 — H3 4 T7336407 T7336408
M10 1.50 4 T7B15427 T7B15428 1/4 — 28 H3 4 T7336427 T7336428
M10 1.25 4 T7B15437 T7B15438 5/16 18 — H3 4 T7336447 T7336448
M12 1.75 4 T7B15507 T7B15508 5/16 — 24 H3 4 T7336467 T7336468
M12 1.25 4 T7B15527 T7B15528 3/8 16 — H3 4 T7336487 T7336488
M16 2.00 4 T7B15607 T7B15608 3/8 — 24 H3 4 T7336507 T7336508
M20 2.50 4 T7B15707 T7B15708 7/16 14 — H3 4 T7336527 T7336528
M24 3.00 4 T7B15787 T7B15788 7/16 — 20 H3 4 T7336547 T7336548
1/2 13 — H3 4 T7336567 T7336568
▶Refer to technical data on page 520~554.
1/2 — 20 H3 4 T7336587 T7336588
9/16 12 — H3 4 T7336607 T7336608
9/16 — 18 H3 4 T7336627 T7336628
5/8 11 — H3 4 T7336647 T7336648
5/8 — 18 H3 4 T7336667 T7336668
3/4 10 — H3 4 T7336707 T7336708
3/4 — 16 H3 4 T7336727 T7336728
7/8 9 — H4 4 T7336747 T7336748
7/8 — 14 H4 4 T7336767 T7336768
1 8 — H4 4 T7336787 T7336788
1 — 12 H4 4 T7336807 T7336808
▶Refer to technical data on page 520~554.
◎ : Excellent ○: Good ◎ : Excellent ○: Good
P M K P M K
Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey Low carbon steels/ Medium to high Steel castings & forgings / Alloyed tool steels/ Free machining Heat-and corrosionresistant Stainless steel castings / Grey
Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron Free machining carbon steels/ Heat-treatable alloy steels Mold steels stainless steels stainless steels / Precipitation hardening cast iron
carbon steels Low alloyed steels Valve stainless steels stainless steels carbon steels Low alloyed steels Valve stainless steels stainless steels
~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19 ~HRc15 ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc23 ~HRc24 (~HB250) ~HRc38 (~HB350) ~HRc19
(~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220) (~HB180) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB240) ~HRc38 (~HB350) ~HRc44 (~HB420) (~HB220)
◎ ◎ ◎ ◎ ◎ ◎
K N S K N S
Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718 Nodular cast iron / Pure and Free machining Pure Aluminum/ Aluminum 718 & 625 INCO / 718
Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium Chilled cast iron / brass Bronze alloy Zinc Magnesium Waspaloy / Hastelloy / Inconel / Titanium
Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286 Meehanite iron / Ductile iron alloyed copper / Alloyed brass Aluminum alloy castings Invar / Monel / Incoloy A286
~HRc24 (~HB250) ~HRc24 (~HB250)
◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎ ◎
