TECHNICAL TECHNICAL

DATA DATA

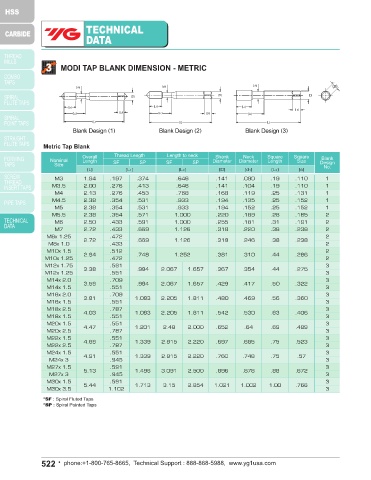

3 MODI TAP BLANK DIMENSION - METRIC 4 HIGH PERFORMANCE TAPS DIN LENGTH / ANSI SHANK - INCH

(d 1) (d 1) (d 1) (d 1)
(d 1) (d 1)
(D) (D)
(D)
(D) (D) (D)
(L 1) (L 1) (L 1)
(L 3) (L 1) (L 1) (L 1)
(L 2) (L 3) (L 2) (L 3) (L 2) (L 3)
(L 2) (L 3) (L 2) (L 3) (L 2)
(L) (L) (L)
(L) (L) (L)
Metric Tap Blank

Overall Thread Length Length to neck Shank Neck Square Square Overall Thread Length Length to neck Shank Neck Square Square
Nominal Length SF SP SF SP Diameter Diameter Length Size Blank Nominal Length SF SP SF SP Diameter Diameter Length Size Blank
Size Design Size Design
No.
No.
(L) (L1) (L2) (D) (d1) (L3) (a) (L) (L1) (L2) (D) (d1) (L3) (a)
M3 1.94 .197 .374 .646 .141 .090 .19 .110 1 #2 1.772 .157 .256 .433 .141 .061 .19 .110 1
M3.5 2.00 .276 .413 .646 .141 .104 .19 .110 1 #3 1.969 .197 .295 .492 .141 .069 .19 .110 1
M4 2.13 .276 .453 .768 .168 .119 .25 .131 1 #4 2.205 .236 .335 .563 .141 .077 .19 .110 1
M4.5 2.38 .354 .531 .933 .194 .135 .25 .152 1 #5 2.205 .236 .374 .626 .141 .090 .19 .110 1
M5 2.38 .354 .531 .933 .194 .152 .25 .152 1 #6 2.205 .276 .413 .689 .141 .094 .19 .110 1
M5.5 2.38 .354 .571 1.000 .220 .189 .28 .165 2 #8 2.480 .276 .453 .752 .168 .120 .25 .131 1
M6 2.50 .433 .591 1.000 .255 .181 .31 .191 2 #10-24 .354 .131 1
2.756 .531 .906 .194 .25 .152
M7 2.72 .433 .669 1.126 .318 .220 .38 .238 2 #10-32 .276 .146 1
M8x 1.25 .472 2 #12-24 .354 .157 1
2.72 .669 1.126 .318 .246 .38 .238 3.150 .571 .906 .220 .28 .165
M8x 1.0 .433 2 #12-28 .276 .166 1
M10x 1.5 .512 2 1/4-20 .433 .180 2
M10x 1.25 2.94 .472 .748 1.252 .381 .310 .44 .286 2 1/4-28 3.150 .354 .591 1.000 .255 .200 .31 .191 2
M12x 1.75 3.38 .591 .984 2.067 1.657 .367 .354 .44 .275 3 5/16-18 3.543 .472 .669 1.126 .318 .234 .38 .238 2
M12x 1.25 .551 3 5/16-24 .394 .254 2
M14x 2.0 .709 3 3/8-16 .551 .287 2
3.59 .984 2.067 1.657 .429 .417 .50 .322 3.937 .748 1.252 .381 .44 .286
M14x 1.5 .551 3 3/8-24 .394 .316 2
M16x 2.0 .709 3 7/16-14 .591 3
3.81 1.083 2.205 1.811 .480 .469 .56 .360 3.937 .866 1.850 1.437 .323 .311 .41 .242
M16x 1.5 .551 3 7/16-20 .472 3
M18x 2.5 .787 3 1/2-13 4.331 .630 3
4.03 1.083 2.205 1.811 .542 .530 .63 .406 .984 2.067 1.657 .367 .354 .44 .275
M18x 1.5 .551 3 1/2-20 3.937 .472 3
M20x 1.5 4.47 .551 1.201 2.48 2.000 .652 .64 .69 .489 3 9/16-12 4.331 .709 .984 2.067 1.657 .429 .417 .50 .322 3
M20x 2.5 .787 3 9/16-18 3.937 .512 3
M22x 1.5 4.69 .551 1.339 2.815 2.220 .697 .685 .75 .523 3 5/8-11 4.331 .748 1.083 2.205 1.811 .480 .469 .56 .360 3
M22x 2.5 .787 3 5/8-18 3.937 .512 3
M24x 1.5 4.91 .551 1.339 2.815 2.220 .760 .748 .75 .57 3 3/4-10 4.921 .827 1.201 2.480 2.000 .590 .577 .69 .442 3
M24x 3 .945 3 3/4-10 4.331 .591 3
M27x 1.5 .591 3 7/8-9 5.512 .827 3
5.13 1.496 3.091 2.500 .896 .878 .88 .672 1.339 2.815 2.220 .697 .685 .75 .523
M27x 3 .945 3 7/8-14 4.921 .709 3
M30x 1.5 .591 3 1-8 6.299 .984 3
5.44 1.713 3.15 2.854 1.021 1.002 1.00 .766 1.496 3.091 2.500 .800 .787 .81 .600
M30x 3.5 1.102 3 1-12 5.512 .709 3
*SF : Spiral Fluted Taps *SF : Spiral Fluted Taps
*SP : Spiral Pointed Taps *SP : Spiral Pointed Taps
