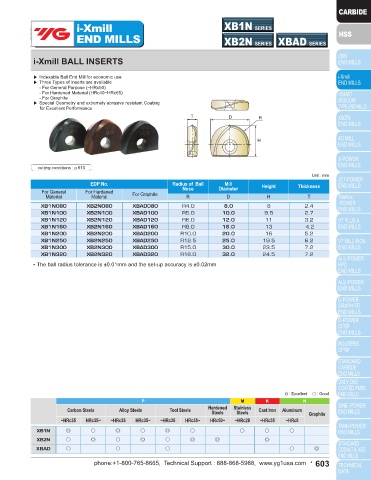

Page 603 - YG 2019

i-Xmill ZRT SERIES i-Xmill XB1N SERIES
END MILLS ZRS SERIES END MILLS XB2N SERIES XBAD SERIES

i-Xmill CORNER RADIUS HOLDERS - STEEL i-Xmill BALL INSERTS

▶ Premium alloy steel with excellent strength. ▶ Indexable Ball End Mill for economic use
▶ Precise shank, Tolerance (h6). ▶ Three Types of Inserts are available
▶ Nickel plated, to prevent corrosion and improve lubricity. - For General Purpose (~HRc50)
- For Hardened Material (HRc40~HRc65)
- For Graphite
▶ Special Geometry and extremely abrasive resistant Coating
for Excellent Performance
D3
D2 D1
L1
L3
L2

cutting conditions : p.610
Taper neck Type Unit : Inch Unit : mm
Mill Shank Length Length Overall Neck Interference EDP No. Radius of Ball Mill Height Thickness
EDP No. Diameter Diameter of Cut Below Shank Length Diameter Angle Length Wrench Screw For General For Hardened For Graphite Nose Diameter
Type
No.
No.
D1 D2 L1 L3 L2 D3 θ˚ Material Material R D H T
ZRT1032 7/8 4 13˚ 58' Regular XB1N080 XB2N080 XBAD080 R4.0 8.0 8 2.4
ZRT2032 5/16 1/2 13/32 2 5-1/8 17/64 4˚ 12' Long TWF07 TX0807 XB1N100 XB2N100 XBAD100 R5.0 10.0 9.5 2.7
ZRT2410 3/8 17/32 1 4 9˚ 27' Regular XB1N120 XB2N120 XBAD120 R6.0 12.0 11 3.2
ZRT2420 1/2 2 5-15/16 5/16 3˚ 6' Long TWF08 TX1008 XB1N160 XB2N160 XBAD160 R8.0 16.0 13 4.2
ZRT3220 1/2 5/8 5/8 2-3/8 6-5/16 27/64 3˚ 19' Long TWF10 TX1210 XB1N200 XB2N200 XBAD200 R10.0 20.0 16 5.2
XB1N250 XB2N250 XBAD250 R12.5 25.0 19.5 6.2
XB1N300 XB2N300 XBAD300 R15.0 30.0 23.5 7.2
XB1N320 XB2N320 XBAD320 R16.0 32.0 24.5 7.2
•The ball radius tolerance is ±0.01mm and the set-up accuracy is ±0.02mm

Straight neck Type Unit :Inch

Mill Shank Length Length Overall Neck
EDP No. Diameter Diameter of Cut Below Shank Length Diameter Length Wrench Screw
No.
No.
Type
D1 D2 L1 L3 L2 D3
ZRS1032 1/2 1/2 17/32 1-3/16 4-3/8 7/16 Regular TWF10 TX1210
ZRS1040 5/8 5/8 2 5-1/8 Regular
ZRS2040 5/8 2-9/16 6-1/2 19/32 Intermediate TWF15 TX1615
ZRS1048 3/4 3/4 2-3/8 5-1/2 Regular
ZRS2048 23/32 3-1/8 7-1/8 23/32 Intermediate TWB20 TX2020
ZRS1100 1 2-3/4 5-15/16 Regular
ZRS2100 1 29/32 3-9/16 8 31/32 Intermediate TWB25 TX2525 ◎ : Excellent ◯ : Good
ZRS1116 1-1/4 1-1/8 3-1/8 6-5/16 Regular
M
ZRS2116 1-1/4 4 8-11/16 1-7/32 Intermediate TWB30 TX3030 P Hardened Stainless K N
● Need to use T Handle : TWH600 (See page 52) Carbon Steels Alloy Steels Tool Steels Steels Steels Cast lron Aluminum Graphite
~HRc35 HRc35~ ~HRc35 HRc35~ ~HRc35 HRc35~ HRc50~ ~HRc28 ~HRc35 ~HRc8
XB1N ◎ ○ ◎ ○ ◎ ○ ○ ○ ○
XB2N ○ ◎ ○ ◎ ○ ◎ ◎ ◎
XBAD ○ ○ ○ ○ ◎
