i-Smart i-Smart
END MILLS XGMF29 SERIES END MILLS ZMC SERIES

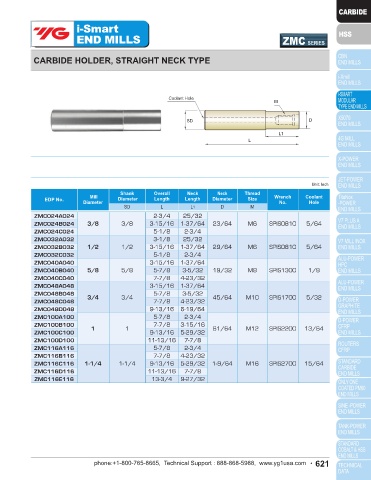

CARBIDE MODULAR HEAD, 6 FLUTE 45º HELIX CARBIDE HOLDER, STRAIGHT NECK TYPE

W
M
Coolant Hole
M
D2 d1 D1
SD D

L1 L1
L2 L

P.626
Unit: Inch Unit: Inch
Mill Neck Length Length Coupling Wrench Thread Mill Shank Overall Neck Neck Thread Wrench Coolant
EDP No. Diameter Diameter of Cut Below Shank Diameter Width Wrench EDP No. Diameter Diameter Length Length Diameter Size No. Hole
L
M
D
SD
D1 D2 L1 L2 d1 W M L1
ZMC024A024 2-3/4 25/32
XGMF29024 3/8 .351 3/8 .689 .256 .315 M6 SPIS0810 ZMC024B024 3/8 3/8 3-15/16 1-37/64 23/64 M6 SPIS0810 5/64
XGMF29032 1/2 .469 1/2 .835 .256 .394 M6 SPIS0810
XGMF29040 5/8 .591 5/8 1.004 .335 .512 M8 SPIS1300 ZMC024C024 5-1/8 2-3/4
XGMF29048 3/4 .711 3/4 1.144 .413 .669 M10 SPIS1700 ZMC032A032 3-1/8 25/32
XGMF29100 1 .961 1 1.472 .492 .866 M12 SPIS2200 ZMC032B032 1/2 1/2 3-15/16 1-37/64 29/64 M6 SPIS0810 5/64
XGMF29116 1-1/4 1.221 1-1/4 1.772 .669 1.063 M16 SPIS2700 ZMC032C032 5-1/8 2-3/4
ZMC040A040 3-15/16 1-37/64
Mill Dia. Tolerance(Inch) ZMC040B040 5/8 5/8 5-7/8 3-5/32 19/32 M8 SPIS1300 1/8
ZMC040C040 7-7/8 4-23/32
0~-.0012
ZMC048A048 3-15/16 1-37/64
ZMC048B048 3/4 3/4 5-7/8 3-5/32 45/64 M10 SPIS1700 5/32
ZMC048C048 7-7/8 4-23/32
ZMC048D048 9-13/16 6-19/64
ZMC100A100 5-7/8 2-3/4
ZMC100B100 1 1 7-7/8 3-15/16 61/64 M12 SPIS2200 13/64
ZMC100C100 9-13/16 5-29/32
ZMC100D100 11-13/16 7-7/8
ZMC116A116 5-7/8 2-3/4
ZMC116B116 7-7/8 4-23/32
ZMC116C116 1-1/4 1-1/4 9-13/16 5-29/32 1-9/64 M16 SPIS2700 15/64
ZMC116D116 11-13/16 7-7/8
ZMC116E116 13-3/4 9-27/32

◎ : Excellent ◯ : Good
P H M K N S
Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○
