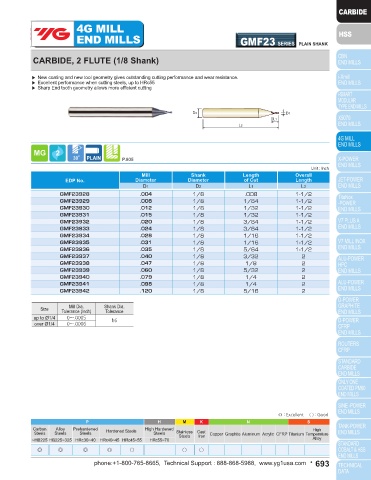

Page 693 - YG 2019

4G MILL 4G MILL
END MILLS GMF23 SERIES PLAIN SHANK END MILLS GMF23 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE (3/16 SHANK) CARBIDE, 2 FLUTE (1/8 Shank)

▶ New coating and new tool geometry gives outstanding cutting performance and wear resistance. ▶ New coating and new tool geometry gives outstanding cutting performance and wear resistance.
▶ Excellent performance when cutting steels, up to HRc55 ▶ Excellent performance when cutting steels, up to HRc55
▶ Sharp End tooth geometry allows more efficient cutting ▶ Sharp End tooth geometry allows more efficient cutting

D2 D1 D2 D1
L1
L1 L2
L2

P.805 P.805
Unit : Inch Unit : Inch
Mill Shank Length Overall Mill Shank Length Overall
EDP No. Diameter Diameter of Cut Length EDP No. Diameter Diameter of Cut Length
D1 D2 L1 L2 D1 D2 L1 L2
GMF23913 .040 3/16 3/32 2 GMF23928 .004 1/8 .008 1-1/2
GMF23914 .047 3/16 1/8 2 GMF23929 .008 1/8 1/64 1-1/2
GMF23915 .050 3/16 1/8 2 GMF23930 .012 1/8 1/32 1-1/2
GMF23916 .055 3/16 5/32 2 GMF23931 .015 1/8 1/32 1-1/2
GMF23917 .060 3/16 5/32 2 GMF23932 .020 1/8 3/64 1-1/2
GMF23918 .063 3/16 5/32 2 GMF23933 .024 1/8 3/64 1-1/2
GMF23919 .070 3/16 3/16 2 GMF23934 .028 1/8 1/16 1-1/2
GMF23920 .079 3/16 1/4 2 GMF23935 .031 1/8 1/16 1-1/2
GMF23921 .087 3/16 1/4 2 GMF23936 .035 1/8 5/64 1-1/2
GMF23922 .094 3/16 1/4 2 GMF23937 .040 1/8 3/32 2
GMF23923 .098 3/16 5/16 2 GMF23938 .047 1/8 1/8 2
GMF23924 .102 3/16 5/16 2 GMF23939 .060 1/8 5/32 2
GMF23925 .106 3/16 5/16 2 GMF23940 .079 1/8 1/4 2
GMF23926 .110 3/16 5/16 2 GMF23941 .098 1/8 1/4 2
GMF23927 .120 3/16 5/16 2 GMF23942 .120 1/8 5/16 2
▶ NEXT PAGE
Mill Dia.
Mill Dia.
Size Tolerance (Inch) Shank Dia. Size Tolerance (Inch) Shank Dia.
Tolerance
Tolerance
up to Ø1/4 0~-.0005 h6 up to Ø1/4 0~-.0005 h6
over Ø1/4 0~-.0006 over Ø1/4 0~-.0006

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Steels
Iron
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ◎ ○ ○ ○
