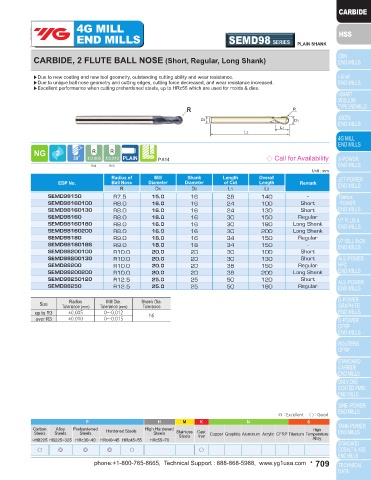

Page 709 - YG 2019

4G MILL 4G MILL
END MILLS SEMD98 SERIES PLAIN SHANK END MILLS SEMD98 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE BALL NOSE (Short, Regular, Long Shank) CARBIDE, 2 FLUTE BALL NOSE (Short, Regular, Long Shank)

▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resistance.
▶Due to unique ball nose geometry and cutting edges, cutting force decreased, and wear resistance increased. ▶Due to unique ball nose geometry and cutting edges, cutting force decreased, and wear resistance increased.
▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies. ▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.

R R
↙ R R
↙
D2 D1
D2 D1
L1
L2 L1
L2

P.814 ◇ Call for Availability P.814 ◇ Call for Availability
R≤3 R>3 R≤3 R>3
Unit : mm Unit : mm
Radius of Mill Shank Length Overall Radius of Mill Shank Length Overall
EDP No. Ball Nose Diameter Diameter of Cut Length Remark EDP No. Ball Nose Diameter Diameter of Cut Length Remark
R D1 D2 L1 L2 R D1 D2 L1 L2
SEMD98080080 R4.0 8.0 8 12 80 Short SEMD98150 R7.5 15.0 16 28 140 -
SEMD98080090 R4.0 8.0 8 12 90 Short SEMD98160100 R8.0 16.0 16 24 100 Short
SEMD98080 R4.0 8.0 8 14 100 Regular SEMD98160130 R8.0 16.0 16 24 130 Short
SEMD98080130 R4.0 8.0 8 14 130 Long Shank SEMD98160 R8.0 16.0 16 30 150 Regular
SEMD98080150 R4.0 8.0 8 14 150 Long Shank SEMD98160180 R8.0 16.0 16 30 180 Long Shank
SEMD98085 R4.25 8.5 10 16 100 - SEMD98160200 R8.0 16.0 16 30 200 Long Shank
SEMD98090 R4.5 9.0 10 18 100 - SEMD98180 R9.0 18.0 16 34 150 Regular
SEMD98100050 R5.0 10.0 10 15 50 Short SEMD9818018S R9.0 18.0 18 34 150 -
SEMD98100060 R5.0 10.0 10 15 60 Short SEMD98200100 R10.0 20.0 20 30 100 Short
SEMD98100080 R5.0 10.0 10 15 80 Short SEMD98200130 R10.0 20.0 20 30 130 Short
SEMD98100090 R5.0 10.0 10 15 90 Short SEMD98200 R10.0 20.0 20 38 150 Regular
SEMD98100 R5.0 10.0 10 18 100 Regular SEMD98200200 R10.0 20.0 20 38 200 Long Shank
SEMD98100130 R5.0 10.0 10 18 130 Long Shank SEMD98250120 R12.5 25.0 25 50 120 Short
SEMD98100150 R5.0 10.0 10 18 150 Long Shank SEMD98250 R12.5 25.0 25 50 180 Regular
SEMD98100180 R5.0 10.0 10 18 180 Long Shank
SEMD98100200 R5.0 10.0 10 18 200 Long Shank Size Radius Mill Dia. Shank Dia.
SEMD98110 R5.5 11.0 12 20 100 - Tolerance (mm) Tolerance (mm) Tolerance
SEMD98120060 R6.0 12.0 12 18 60 Short up to R3 ±0.005 0~-0.012 h6
SEMD98120080 R6.0 12.0 12 18 80 Short over R3 ±0.010 0~-0.015
SEMD98120090 R6.0 12.0 12 18 90 Short
SEMD98120100 R6.0 12.0 12 18 100 Short
SEMD98120 R6.0 12.0 12 22 110 Regular
SEMD98120130 R6.0 12.0 12 22 130 Long Shank
SEMD98120150 R6.0 12.0 12 22 150 Long Shank
SEMD98120180 R6.0 12.0 12 22 180 Long Shank
SEMD98120220 R6.0 12.0 12 22 200 Long Shank
SEMD98130 R6.5 13.0 12 24 100 -
SEMD98140 R7.0 14.0 12 26 100 Regular
SEMD9814014S R7.0 14.0 14 26 100 -
SEMD9814016S R7.0 14.0 16 26 100 -
▶ NEXT PAGE
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ○ ○
