DREAM DRILLS DREAM DRILLS

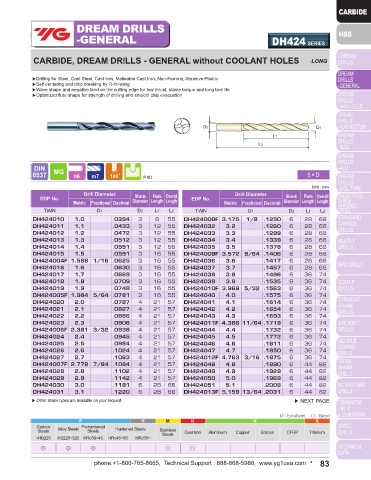

-GENERAL DH423 SERIES -GENERAL DH424 SERIES

CARBIDE, DREAM DRILLS - GENERAL without COOLANT HOLES SHORT CARBIDE, DREAM DRILLS - GENERAL without COOLANT HOLES LONG

▶Drilling for Steel, Cast Steel, Cast Iron, Malleable Cast Iron, Non-Ferrous, Abrasive Plastic ▶Drilling for Steel, Cast Steel, Cast Iron, Malleable Cast Iron, Non-Ferrous, Abrasive Plastic
▶Self centering and chip breaking by R-thinning ▶Self centering and chip breaking by R-thinning
▶Wave shape and negative land on the cutting edge for low thrust, stable torque and long tool life ▶Wave shape and negative land on the cutting edge for low thrust, stable torque and long tool life
▶Optimized flute shape for strength of drilling and smooth chip evacuation ▶Optimized flute shape for strength of drilling and smooth chip evacuation

D2 D1 D2 D1
L1 L1
L2 L2

140 P.90 3 × D 140 P.90 5 × D
Unit : mm Unit : mm
Drill Diameter Shank Flute Overall Drill Diameter Shank Flute Overall Drill Diameter Shank Flute Overall Drill Diameter Shank Flute Overall
EDP No. EDP No. EDP No. EDP No.
Metric Fractional Decimal Diameter Length Length Metric Fractional Decimal Diameter Length Length Metric Fractional Decimal Diameter Length Length Metric Fractional Decimal Diameter Length Length
TiAlN D1 D2 L1 L2 TiAlN D1 D2 L1 L2 TiAlN D1 D2 L1 L2 TiAlN D1 D2 L1 L2
DH423048F 19.050 3/4 .7500 20 79 131 DH423196 19.6 .7717 20 79 131 DH424010 1.0 .0394 3 8 55 DH424008F 3.175 1/8 .1250 6 28 66
DH423191 19.1 .7520 20 79 131 DH423197 19.7 .7756 20 79 131 DH424011 1.1 .0433 3 12 55 DH424032 3.2 .1260 6 28 66
DH423192 19.2 .7559 20 79 131 DH423198 19.8 .7795 20 79 131 DH424012 1.2 .0472 3 12 55 DH424033 3.3 .1299 6 28 66
DH423193 19.3 .7598 20 79 131 DH423199 19.9 .7835 20 79 131 DH424013 1.3 .0512 3 12 55 DH424034 3.4 .1339 6 28 66
DH423194 19.4 .7638 20 79 131 DH423200 20.0 .7874 20 79 131 DH424014 1.4 .0551 3 12 55 DH424035 3.5 .1378 6 28 66
DH423195 19.5 .7676 20 79 131 DH424015 1.5 .0591 3 16 55 DH424009F 3.572 9/64 .1406 6 28 66
▶ Other shank types are available on your request. DH424004F 1.588 1/16 .0625 3 16 55 DH424036 3.6 .1417 6 28 66
DH424016 1.6 .0630 3 16 55 DH424037 3.7 .1457 6 28 66
DH424017 1.7 .0669 3 16 55 DH424038 3.8 .1496 6 36 74
DH424018 1.8 .0709 3 16 55 DH424039 3.9 .1535 6 36 74
DH424019 1.9 .0748 3 16 55 DH424010F 3.969 5/32 .1563 6 36 74
DH424005F 1.984 5/64 .0781 3 16 55 DH424040 4.0 .1575 6 36 74
DH424020 2.0 .0787 4 21 57 DH424041 4.1 .1614 6 36 74
DH424021 2.1 .0827 4 21 57 DH424042 4.2 .1654 6 36 74
DH424022 2.2 .0866 4 21 57 DH424043 4.3 .1693 6 36 74
DH424023 2.3 .0906 4 21 57 DH424011F 4.366 11/64 .1719 6 36 74
DH424006F 2.381 3/32 .0938 4 21 57 DH424044 4.4 .1732 6 36 74
DH424024 2.4 .0945 4 21 57 DH424045 4.5 .1772 6 36 74
DH424025 2.5 .0984 4 21 57 DH424046 4.6 .1811 6 36 74
DH424026 2.6 .1024 4 21 57 DH424047 4.7 .1850 6 36 74
DH424027 2.7 .1063 4 21 57 DH424012F 4.763 3/16 .1875 6 36 74
DH424007F 2.778 7/64 .1094 4 21 57 DH424048 4.8 .1890 6 44 82
DH424028 2.8 .1102 4 21 57 DH424049 4.9 .1929 6 44 82
DH424029 2.9 .1142 4 21 57 DH424050 5.0 .1969 6 44 82
DH424030 3.0 .1181 6 28 66 DH424051 5.1 .2008 6 44 82
DH424031 3.1 .1220 6 28 66 DH424013F 5.159 13/64 .2031 6 44 82
▶ Other shank types are available on your request. ▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Prehardened Carbon Prehardened
Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium
Steels
Steels
~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~ ~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~
◎ ◎ ◎ ○ ○ ◎ ◎ ◎ ○ ○
