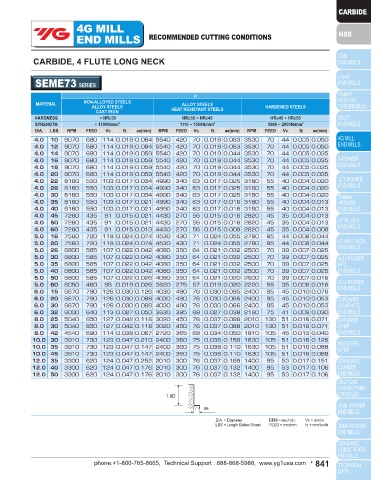

Page 841 - YG 2019

4G MILL 4G MILL
END MILLS RECOMMENDED CUTTING CONDITIONS END MILLS RECOMMENDED CUTTING CONDITIONS

CARBIDE, 4 FLUTE LONG NECK CARBIDE, 4 FLUTE LONG NECK

SEME73 SERIES SEME73 SERIES
P P
MATERIAL NON-ALLOYED STEELS ALLOY STEELS MATERIAL NON-ALLOYED STEELS ALLOY STEELS
ALLOY STEELS HEAT RESISTANT STEELS HARDENED STEELS ALLOY STEELS HARDENED STEELS
CAST IRON CAST IRON HEAT RESISTANT STEELS
HARDNESS ~ HRc35 HRc35 ~ HRc45 HRc45 ~ HRc55 HARDNESS ~ HRc35 HRc35 ~ HRc45 HRc45 ~ HRc55
STRENGTH ~ 1100N/mm 2 1110 ~ 1500N/mm 2 1500 ~ 2000N/mm 2 STRENGTH ~ 1100N/mm 2 1110 ~ 1500N/mm 2 1500 ~ 2000N/mm 2
DIA. LBS RPM FEED Vc fz ae(mm) RPM FEED Vc fz ae(mm) RPM FEED Vc fz ae(mm) DIA. LBS RPM FEED Vc fz ae(mm) RPM FEED Vc fz ae(mm) RPM FEED Vc fz ae(mm)
2.0 10 13900 330 87 0.006 0.029 9070 200 57 0.006 0.022 6000 60 38 0.003 0.018 4.0 10 9070 680 114 0.019 0.084 5540 420 70 0.019 0.063 3530 70 44 0.005 0.050
2.0 12 12510 265 79 0.005 0.017 8160 160 51 0.005 0.013 5400 50 34 0.002 0.010 4.0 12 9070 680 114 0.019 0.084 5540 420 70 0.019 0.063 3530 70 44 0.005 0.050
2.0 16 12510 265 79 0.005 0.017 8160 160 51 0.005 0.013 5400 50 34 0.002 0.010 4.0 14 9070 680 114 0.019 0.059 5540 420 70 0.019 0.044 3530 70 44 0.005 0.035
2.0 18 12510 265 79 0.005 0.011 8160 160 51 0.005 0.008 5400 50 34 0.002 0.006 4.0 16 9070 680 114 0.019 0.059 5540 420 70 0.019 0.044 3530 70 44 0.005 0.035
2.0 20 12510 265 79 0.005 0.011 8160 160 51 0.005 0.008 5400 50 34 0.002 0.006 4.0 18 9070 680 114 0.019 0.059 5540 420 70 0.019 0.044 3530 70 44 0.005 0.035
2.0 22 11120 210 70 0.005 0.011 7260 130 46 0.004 0.008 4800 40 30 0.002 0.006 4.0 20 9070 680 114 0.019 0.059 5540 420 70 0.019 0.044 3530 70 44 0.005 0.035
2.0 26 11120 210 70 0.005 0.011 7260 130 46 0.004 0.008 4800 40 30 0.002 0.006 4.0 22 8160 550 103 0.017 0.034 4990 340 63 0.017 0.025 3180 55 40 0.004 0.020
2.0 30 11120 210 70 0.005 0.006 7260 130 46 0.004 0.005 4800 40 30 0.002 0.004 4.0 26 8160 550 103 0.017 0.034 4990 340 63 0.017 0.025 3180 55 40 0.004 0.020
2.0 35 8340 140 52 0.004 0.004 5440 85 34 0.004 0.003 3600 25 23 0.002 0.003 4.0 30 8160 550 103 0.017 0.034 4990 340 63 0.017 0.025 3180 55 40 0.004 0.020
2.0 40 8340 140 52 0.004 0.004 5440 85 34 0.004 0.003 3600 25 23 0.002 0.003 4.0 35 8160 550 103 0.017 0.021 4990 340 63 0.017 0.016 3180 55 40 0.004 0.013
2.0 45 4170 60 26 0.004 0.004 2720 35 17 0.003 0.003 1800 10 11 0.001 0.003 4.0 40 8160 550 103 0.017 0.021 4990 340 63 0.017 0.016 3180 55 40 0.004 0.013
2.0 50 4170 60 26 0.004 0.004 2720 35 17 0.003 0.003 1800 10 11 0.001 0.003 4.0 45 7260 435 91 0.015 0.021 4430 270 56 0.015 0.016 2820 45 35 0.004 0.013
2.0 60 4170 60 26 0.004 0.004 2720 35 17 0.003 0.003 1800 10 11 0.001 0.003 4.0 50 7260 435 91 0.015 0.021 4430 270 56 0.015 0.016 2820 45 35 0.004 0.013
2.5 8 12000 350 94 0.007 0.037 7600 220 60 0.007 0.028 4500 60 35 0.003 0.022 4.0 60 7260 435 91 0.015 0.013 4430 270 56 0.015 0.009 2820 45 35 0.004 0.008
2.5 10 12000 350 94 0.007 0.037 7600 220 60 0.007 0.028 4500 60 35 0.003 0.022 5.0 16 7560 720 119 0.024 0.074 4530 430 71 0.024 0.055 2780 85 44 0.008 0.044
2.5 12 12000 350 94 0.007 0.037 7600 220 60 0.007 0.028 4500 60 35 0.003 0.022 5.0 20 7560 720 119 0.024 0.074 4530 430 71 0.024 0.055 2780 85 44 0.008 0.044
2.5 14 10800 285 85 0.007 0.021 6840 180 54 0.007 0.016 4050 50 32 0.003 0.013 5.0 26 6800 585 107 0.022 0.042 4080 350 64 0.021 0.032 2500 70 39 0.007 0.025
2.5 16 10800 285 85 0.007 0.021 6840 180 54 0.007 0.016 4050 50 32 0.003 0.013 5.0 30 6800 585 107 0.022 0.042 4080 350 64 0.021 0.032 2500 70 39 0.007 0.025
2.5 18 10800 285 85 0.007 0.021 6840 180 54 0.007 0.016 4050 50 32 0.003 0.013 5.0 35 6800 585 107 0.022 0.042 4080 350 64 0.021 0.032 2500 70 39 0.007 0.025
2.5 20 10800 285 85 0.007 0.021 6840 180 54 0.007 0.016 4050 50 32 0.003 0.013 5.0 40 6800 585 107 0.022 0.042 4080 350 64 0.021 0.032 2500 70 39 0.007 0.025
2.5 22 10800 285 85 0.007 0.013 6840 180 54 0.007 0.010 4050 50 32 0.003 0.008 5.0 50 6800 585 107 0.022 0.026 4080 350 64 0.021 0.020 2500 70 39 0.007 0.016
2.5 26 9600 225 75 0.006 0.013 6080 140 48 0.006 0.010 3600 40 28 0.003 0.008 5.0 60 6050 460 95 0.019 0.026 3620 275 57 0.019 0.020 2220 55 35 0.006 0.016
2.5 30 9600 225 75 0.006 0.013 6080 140 48 0.006 0.010 3600 40 28 0.003 0.008 6.0 15 6670 790 126 0.030 0.126 4030 490 76 0.030 0.095 2400 95 45 0.010 0.076
2.5 35 9600 225 75 0.006 0.008 6080 140 48 0.006 0.006 3600 40 28 0.003 0.005 6.0 20 6670 790 126 0.030 0.088 4030 490 76 0.030 0.066 2400 95 45 0.010 0.053
2.5 40 7200 145 57 0.005 0.008 4560 90 36 0.005 0.006 2700 25 21 0.002 0.005 6.0 30 6670 790 126 0.030 0.088 4030 490 76 0.030 0.066 2400 95 45 0.010 0.053
2.5 45 7200 145 57 0.005 0.005 4560 90 36 0.005 0.004 2700 25 21 0.002 0.003 6.0 32 6000 640 113 0.027 0.050 3630 395 68 0.027 0.038 2160 75 41 0.009 0.030
2.5 50 7200 145 57 0.005 0.005 4560 90 36 0.005 0.004 2700 25 21 0.002 0.003 8.0 25 5040 850 127 0.042 0.118 3020 450 76 0.037 0.088 2010 130 51 0.016 0.071
3.0 6 10700 380 101 0.009 0.063 6670 240 63 0.009 0.047 4030 70 38 0.004 0.038 8.0 30 5040 850 127 0.042 0.118 3020 450 76 0.037 0.088 2010 130 51 0.016 0.071
3.0 8 10700 380 101 0.009 0.063 6670 240 63 0.009 0.047 4030 70 38 0.004 0.038 8.0 42 4540 690 114 0.038 0.067 2720 365 68 0.034 0.050 1810 105 45 0.015 0.040
3.0 10 10700 380 101 0.009 0.044 6670 240 63 0.009 0.033 4030 70 38 0.004 0.026 10.0 30 3910 730 123 0.047 0.210 2400 360 75 0.038 0.158 1630 105 51 0.016 0.126
3.0 12 10700 380 101 0.009 0.044 6670 240 63 0.009 0.033 4030 70 38 0.004 0.026 10.0 35 3910 730 123 0.047 0.147 2400 360 75 0.038 0.110 1630 105 51 0.016 0.088
3.0 14 10700 380 101 0.009 0.044 6670 240 63 0.009 0.033 4030 70 38 0.004 0.026 10.0 45 3910 730 123 0.047 0.147 2400 360 75 0.038 0.110 1630 105 51 0.016 0.088
3.0 16 9630 310 91 0.008 0.025 6000 195 57 0.008 0.019 3630 55 34 0.004 0.015 12.0 35 3300 620 124 0.047 0.252 2010 300 76 0.037 0.189 1400 95 53 0.017 0.151
3.0 18 9630 310 91 0.008 0.025 6000 195 57 0.008 0.019 3630 55 34 0.004 0.015 12.0 40 3300 620 124 0.047 0.176 2010 300 76 0.037 0.132 1400 95 53 0.017 0.106
3.0 20 9630 310 91 0.008 0.025 6000 195 57 0.008 0.019 3630 55 34 0.004 0.015 12.0 50 3300 620 124 0.047 0.176 2010 300 76 0.037 0.132 1400 95 53 0.017 0.106
3.0 22 9630 310 91 0.008 0.025 6000 195 57 0.008 0.019 3630 55 34 0.004 0.015
3.0 26 9630 310 91 0.008 0.016 6000 195 57 0.008 0.012 3630 55 34 0.004 0.009
3.0 30 9630 310 91 0.008 0.016 6000 195 57 0.008 0.012 3630 55 34 0.004 0.009 1.0D
3.0 35 8560 245 81 0.007 0.016 5340 155 50 0.007 0.012 3220 45 30 0.003 0.009
3.0 40 8560 245 81 0.007 0.009 5340 155 50 0.007 0.007 3220 45 30 0.003 0.006 ae
3.0 45 8560 245 81 0.007 0.009 5340 155 50 0.007 0.007 3220 45 30 0.003 0.006
3.0 50 6420 160 61 0.006 0.006 4000 100 38 0.006 0.005 2420 30 23 0.003 0.004 DIA. = Diameter RPM = rev./min. Vc = m/min.
LBS = Length Below Shank
FEED = mm/min.
fz = mm/tooth
3.0 60 6420 160 61 0.006 0.006 4000 100 38 0.006 0.005 2420 30 23 0.003 0.004
4.0 8 9070 680 114 0.019 0.084 5540 420 70 0.019 0.063 3530 70 44 0.005 0.050
DIA. = Diameter RPM = rev./min. Vc = m/min.
LBS = Length Below Shank FEED = mm/min. fz = mm/tooth
