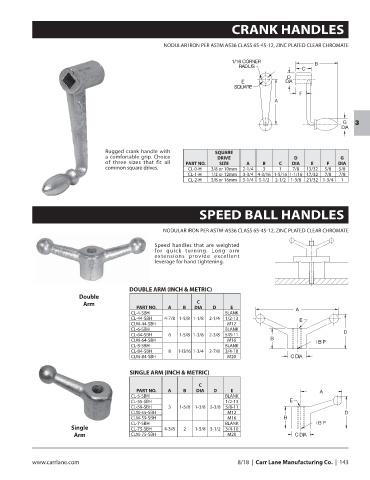

CRANK HANDLES

NODULAR IRON PER ASTM A536 CLASS 65-45-12, ZINC PLATED CLEAR CHROMATE

3

Rugged crank handle with SQUARE
a comfortable grip. Choice DRIVE D G
of three sizes that fit all PART NO. SIZE A B C DIA E F DIA
common square drives. CL-0-H 3/8 or 10mm 2-1/4 3 1 7/8 13/32 5/8 5/8
CL-1-H 1/2 or 12mm 3-3/4 4-3/16 1-5/16 1-1/16 17/32 7/8 7/8
CL-2-H 5/8 or 16mm 5-1/4 5-1/2 2-1/2 1-3/8 21/32 1-3/4 1

SPEED BALL HANDLES

NODULAR IRON PER ASTM-A536 CLASS 65-45-12, ZINC PLATED CLEAR CHROMATE

Speed handles that are weighted
for quick turning. Long arm
extensions provide excellent
leverage for hand tightening.

DOUBLE ARM (INCH & METRIC)
Double
Arm C
PART NO. A B DIA D E
CL-4-SBH BLANK
CL-44-SBH 4-7/8 1-5/8 1-1/8 2-1/4 1/2-13
CLM-44-SBH M12
CL-6-SBH BLANK
CL-64-SBH 6 1-5/8 1-3/8 2-3/8 5/8-11
CLM-64-SBH M16
CL-8-SBH BLANK
CL-84-SBH 8 1-13/16 1-3/4 2-7/8 3/4-10
CLM-84-SBH M20

SINGLE ARM (INCH & METRIC)

C
PART NO. A B DIA D E
CL-5-SBH BLANK
CL-55-SBH 1/2-13
CL-59-SBH 3 1-5/8 1-3/8 2-3/8 5/8-11
CLM-55-SBH M12
CLM-59-SBH M16
CL-7-SBH BLANK
Single CL-75-SBH 4-3/8 2 1-5/8 3-1/2 3/4-10
Arm CLM-75-SBH M20
