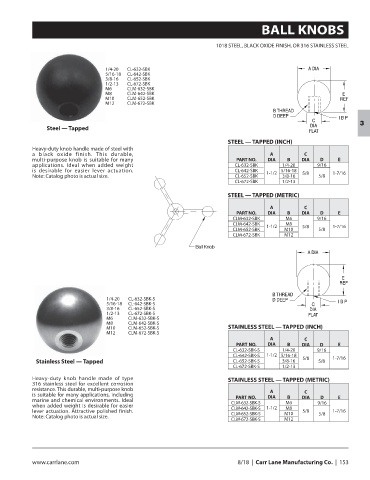

Page 155 - CarrLaneCatalog_2019ed-c.pdf

BALL KNOBS

1018 STEEL, BLACK OXIDE FINISH, OR 316 STAINLESS STEEL

1/4-20 CL-632-SBK A DIA
5/16-18 CL-642-SBK
3/8-16 CL-652-SBK
1/2-13 CL-672-SBK
M6 CLM-632-SBK
M8 CLM-642-SBK E
M10 CLM-652-SBK REF
M12 CLM-672-SBK
B THREAD
D DEEP I B P
C
Steel — Tapped DIA 3
FLAT
STEEL — TAPPED (INCH)
Heavy-duty knob handle made of steel with
a black oxide finish. This durable, A C
multi-purpose knob is suitable for many PART NO. DIA B DIA D E
applications. Ideal when added weight CL-632-SBK 1/4-20 9/16
is desirable for easier lever actuation. CL-642-SBK 1-1/2 5/16-18 5/8 1-7/16
Note: Catalog photo is actual size. CL-652-SBK 3/8-16 5/8
CL-672-SBK 1/2-13

STEEL — TAPPED (METRIC)
A C
PART NO. DIA B DIA D E
CLM-632-SBK M6 9/16
CLM-642-SBK M8
1-1/2 5/8 1-7/16
CLM-652-SBK M10 5/8
CLM-672-SBK M12

A DIA

E
REF
B THREAD
1/4-20 CL-632-SBK-S D DEEP I B P
5/16-18 CL-642-SBK-S C
3/8-16 CL-652-SBK-S DIA
1/2-13 CL-672-SBK-S FLAT
M6 CLM-632-SBK-S
M8 CLM-642-SBK-S
M10 CLM-652-SBK-S STAINLESS STEEL — TAPPED (INCH)
M12 CLM-672-SBK-S
A C
PART NO. DIA B DIA D E
CL-632-SBK-S 1/4-20 9/16
CL-642-SBK-S 1-1/2 5/16-18 1-7/16
Stainless Steel — Tapped CL-652-SBK-S 3/8-16 5/8 5/8
CL-672-SBK-S 1/2-13
Heavy-duty knob handle made of type STAINLESS STEEL — TAPPED (METRIC)
316 stainless steel for excellent corrosion
resistance. This durable, multi-purpose knob A C
is suitable for many applications, including PART NO. DIA B DIA D E
marine and chemical environments. Ideal CLM-632-SBK-S M6 9/16
when added weight is desirable for easier CLM-642-SBK-S 1-1/2 M8
lever actuation. Attractive polished finish. CLM-652-SBK-S M10 5/8 5/8 1-7/16
Note: Catalog photo is actual size.
CLM-672-SBK-S M12

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 153
