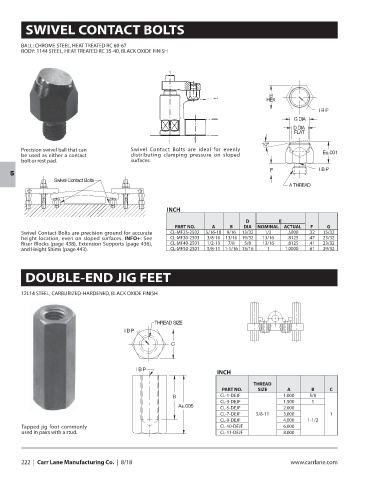

Page 224 - CarrLaneCatalog_2019ed-c.pdf

SWIVEL CONTACT BOLTS

BALL: CHROME STEEL, HEAT TREATED RC 60-67
BODY: 1144 STEEL, HEAT TREATED RC 35-40, BLACK OXIDE FINISH

Precision swivel ball that can Swivel Contact Bolts are ideal for evenly
be used as either a contact distributing clamping pressure on sloped
bolt or rest pad. surfaces.

5

INCH
D E
PART NO. A B DIA NOMINAL ACTUAL F G
Swivel Contact Bolts are precision ground for accurate CL-MF25-2502 5/16-18 9/16 13/32 1/2 .5000 .32 15/32
height location, even on sloped surfaces. INFO+: See CL-MF30-2503 3/8-16 13/16 19/32 13/16 .8125 .47 23/32
Riser Blocks (page 438), Extension Supports (page 436), CL-MF40-2501 1/2-13 7/8 5/8 13/16 .8125 .41 23/32
and Height Shims (page 443). CL-MF50-2501 5/8-11 1-1/16 13/16 1 1.0000 .61 29/32

DOUBLE-END JIG FEET

12L14 STEEL, CARBURIZED-HARDENED, BLACK OXIDE FINISH

INCH

THREAD
PART NO. SIZE A B C
CL-1-DEJF 1.000 5/8
CL-3-DEJF 1.500 1
CL-5-DEJF 2.000
CL-7-DEJF 5/8-11 3.000 1
CL-9-DEJF 4.000 1-1/2
Tapped jig foot commonly CL-10-DEJF 6.000
used in pairs with a stud. CL-11-DEJF 8.000

222 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
