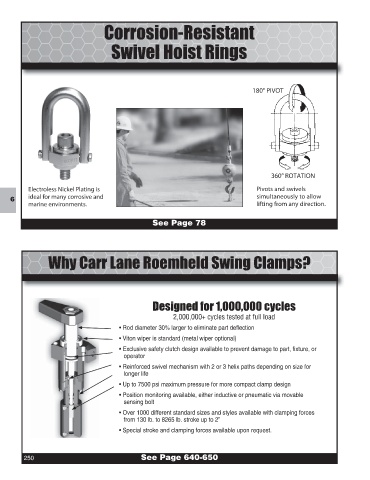

Corrosion-Resistant
Swivel Hoist Rings
180° PIVOT
360° ROTATION
Electroless Nickel Plating is Pivots and swivels
ideal for many corrosive and simultaneously to allow
6
marine environments. lifting from any direction.
See Page 78
Why Carr Lane Roemheld Swing Clamps?
Designed for 1,000,000 cycles
2,000,000+ cycles tested at full load
• Rod diameter 30% larger to eliminate part deflection
• Viton wiper is standard (metal wiper optional)
• Exclusive safety clutch design available to prevent damage to part, fixture, or
operator
• Reinforced swivel mechanism with 2 or 3 helix paths depending on size for
longer life
• Up to 7500 psi maximum pressure for more compact clamp design
• Position monitoring available, either inductive or pneumatic via movable
sensing bolt
• Over 1000 different standard sizes and styles available with clamping forces
from 130 lb. to 8265 lb. stroke up to 2”
• Special stroke and clamping forces available upon request.
250 See Page 640-650
