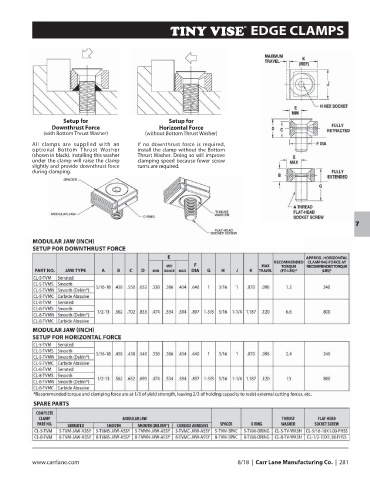

TINY VISE EDGE CLAMPS
Setup for Setup for
Downthrust Force Horizontal Force
(with Bottom Thrust Washer) (without Bottom Thrust Washer)
All clamps are supplied with an If no downthrust force is required,
optional Bottom Thrust Washer install the clamp without the Bottom
(shown in black). Installing this washer Thrust Washer. Doing so will improve
under the clamp will raise the clamp clamping speed because fewer screw
slightly and provide downthrust force turns are required.
during clamping.
