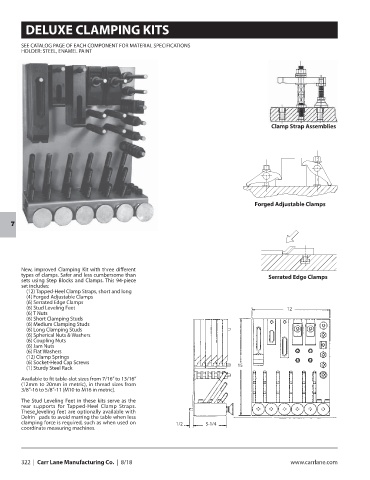

DELUXE CLAMPING KITS

SEE CATALOG PAGE OF EACH COMPONENT FOR MATERIAL SPECIFICATIONS
HOLDER: STEEL, ENAMEL PAINT

Clamp Strap Assemblies

Forged Adjustable Clamps

7

New, improved Clamping Kit with three different
types of clamps. Safer and less cumbersome than Serrated Edge Clamps
sets using Step Blocks and Clamps. This 94-piece
set includes:
(12) Tapped-Heel Clamp Straps, short and long
(4) Forged Adjustable Clamps
(6) Serrated Edge Clamps
(6) Stud Leveling Feet 12
(6) T Nuts
(6) Short Clamping Studs
(6) Medium Clamping Studs
(6) Long Clamping Studs
(6) Spherical Nuts & Washers
(6) Coupling Nuts
(6) Jam Nuts
(6) Flat Washers
(12) Clamp Springs
(6) Socket-Head Cap Screws 15
(1) Sturdy Steel Rack

Available to fit table-slot sizes from 7/16” to 13/16”
(12mm to 20mm in metric), in thread sizes from
3/8”-16 to 5/8”-11 (M10 to M16 in metric).
The Stud Leveling Feet in these kits serve as the
rear supports for Tapped-Heel Clamp Straps.
These leveling feet are optionally available with
®
Delrin pads to avoid marring the table when less
clamping force is required, such as when used on 1/2 5-1/4
coordinate measuring machines.
