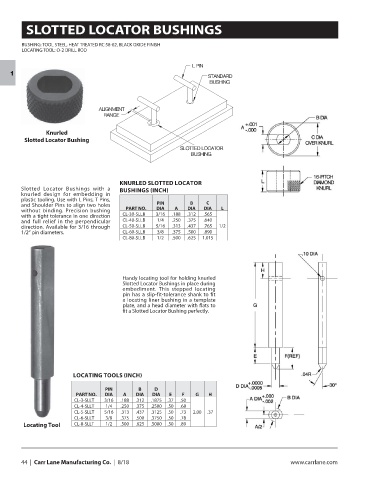

SLOTTED LOCATOR BUSHINGS

BUSHING: TOOL STEEL, HEAT TREATED RC 58-62, BLACK OXIDE FINISH
LOCATING TOOL: O-2 DRILL ROD

1

Knurled
Slotted Locator Bushing

KNURLED SLOTTED LOCATOR
Slotted Locator Bushings with a BUSHINGS (INCH)
knurled design for embedding in
plastic tooling. Use with L Pins, T Pins,
and Shoulder Pins to align two holes PIN B C
without binding. Precision bushing PART NO. DIA A DIA DIA L
with a tight tolerance in one direction CL-30-SLLB 3/16 .188 .312 .565
and full relief in the perpendicular CL-40-SLLB 1/4 .250 .375 .640
direction. Available for 3/16 through CL-50-SLLB 5/16 .313 .437 .765 1/2
1/2” pin diameters. CL-60-SLLB 3/8 .375 .500 .890
CL-80-SLLB 1/2 .500 .625 1.015

Handy locating tool for holding knurled
Slotted Locator Bushings in place during
embediment. This stepped locating
pin has a slip-fit-tolerance shank to fit
a locating liner bushing in a template
plate, and a head diameter with flats to
fit a Slotted Locator Bushing perfectly.

LOCATING TOOLS (INCH)

PIN B D
PART NO. DIA A DIA DIA E F G H
CL-3-SLLT 3/16 .188 .312 .1875 .37 .50
CL-4-SLLT 1/4 .250 .375 .2500 .50 .68
CL-5-SLLT 5/16 .313 .437 .3125 .50 .73 2.00 .37
CL-6-SLLT 3/8 .375 .500 .3750 .50 .78
Locating Tool CL-8-SLLT 1/2 .500 .625 .5000 .50 .89

44 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
