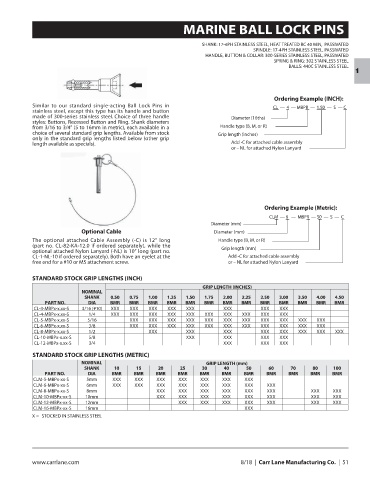

MARINE BALL LOCK PINS

SHANK: 17-4PH STAINLESS STEEL, HEAT TREATED RC 40 MIN, PASSIVATED
SPINDLE: 17-4PH STAINLESS STEEL, PASSIVATED
HANDLE, BUTTON & COLLAR: 300-SERIES STAINLESS STEEL, PASSIVATED
SPRING & RING: 302 STAINLESS STEEL
BALLS: 440C STAINLESS STEEL
1

Ordering Example (INCH):
Similar to our standard single-acting Ball Lock Pins in CL — 4 — MBPR — 1.50 — S — C
stainless steel, except this type has its handle and button
made of 300-series stainless steel. Choice of three handle Diameter (16ths)
styles: Buttons, Recessed Button and Ring. Shank diameters
from 3/16 to 3/4” (5 to 16mm in metric), each available in a Handle type (B, M, or R)
choice of several standard grip lengths. Available from stock Grip length (inches)
only in the standard grip lengths listed below (other grip
length available as specials). Add -C for attached cable assembly
or – NL for attached Nylon Lanyard

Ordering Example (Metric):
CLM — 6 — MBPR — 50 — S — C
Diameter (mm)
Optional Cable Diameter (mm)
The optional attached Cable Assembly (-C) is 12” long Handle type (B, M, or R)
(part no. CL-82-KA-12.0 if ordered separately), while the
optional attached Nylon Lanyard (-NL) is 10” long (part no. Grip length (mm)
CL-1-NL-10 if ordered separately). Both have an eyelet at the Add -C for attached cable assembly
free end for a #10 or M5 attachment screw. or – NL for attached Nylon Lanyard

STANDARD STOCK GRIP LENGTHS (INCH)
GRIP LENGTH (INCHES)
NOMINAL
SHANK 0.50 0.75 1.00 1.25 1.50 1.75 2.00 2.25 2.50 3.00 3.50 4.00 4.50
PART NO. DIA BMR BMR BMR BMR BMR BMR BMR BMR BMR BMR BMR BMR BMR
CL-3-MBPx-x.xx-S 3/16 (#10) XXX XXX XXX XXX XXX XXX XXX XXX
CL-4-MBPx-x.xx-S 1/4 XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX
CL-5-MBPx-x.xx-S 5/16 XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX
CL-6-MBPx-x.xx-S 3/8 XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX XXX
CL-8-MBPx-x.xx-S 1/2 XXX XXX XXX XXX XXX XXX XXX XXX
CL-10-MBPx-x.xx-S 5/8 XXX XXX XXX XXX
CL-12-MBPx-x.xx-S 3/4 XXX XXX XXX

STANDARD STOCK GRIP LENGTHS (METRIC)
NOMINAL GRIP LENGTH (mm)
SHANK 10 15 20 25 30 40 50 60 70 80 100
PART NO. DIA BMR BMR BMR BMR BMR BMR BMR BMR BMR BMR BMR
CLM-5-MBPx-xx-S 5mm XXX XXX XXX XXX XXX XXX XXX
CLM-6-MBPx-xx-S 6mm XXX XXX XXX XXX XXX XXX XXX XXX
CLM-8-MBPx-xx-S 8mm XXX XXX XXX XXX XXX XXX XXX XXX
CLM-10-MBPx-xx-S 10mm XXX XXX XXX XXX XXX XXX XXX XXX
CLM-12-MBPx-xx-S 12mm XXX XXX XXX XXX XXX XXX XXX
CLM-16-MBPx-xx-S 16mm XXX
X = STOCKED IN STAINLESS STEEL
