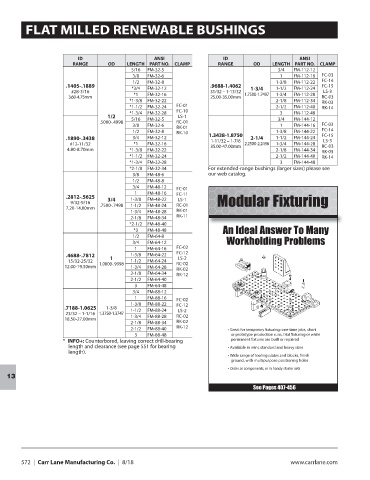

FLAT MILLED RENEWABLE BUSHINGS

ID ANSI ID ANSI
RANGE OD LENGTH PART NO. CLAMP RANGE OD LENGTH PART NO. CLAMP
5/16 FM-32-5 3/4 FM-112-12
3/8 FM-32-6 1 FM-112-16 FC-03
1/2 FM-32-8 1-3/8 FM-112-22 FC-14
.1405-.1889 *3/4 FM-32-12 .9688-1.4062 1-1/2 FM-112-24 FC-15
#28-3/16 31/32 – 1-13/32 1-3/4 LS-3
3.60-4.75mm *1 FM-32-16 25.00-35.00mm 1.7500-1.7497 1-3/4 FM-112-28 RC-03
*1-3/8 FM-32-22 2-1/8 FM-112-34 RK-03
*1-1/2 FM-32-24 FC-01 2-1/2 FM-112-40 RK-14
FC-10
*1-3/4 FM-32-28 3 FM-112-48
1/2 5/16 FM-32-5 LS-1 3/4 FM-144-12
.5000-.4998 RC-01
3/8 FM-32-6 1 FM-144-16 FC-03
RK-01
1/2 FM-32-8 RK-10 1-3/8 FM-144-22 FC-14
.1890-.3438 3/4 FM-32-12 1.3438-1.8750 2-1/4 1-1/2 FM-144-24 FC-15
1-11/32 – 1-7/8
LS-3
#12-11/32 *1 FM-32-16 35.00-47.00mm 2.2500-2.2496 1-3/4 FM-144-28 RC-03
4.80-8.70mm *1-3/8 FM-32-22 2-1/8 FM-144-34
RK-03
*1-1/2 FM-32-24 2-1/2 FM-144-40 RK-14
*1-3/4 FM-32-28 3 FM-144-48
*2-1/8 FM-32-34 For extended-range bushings (larger sizes) please see
3/8 FM-48-6 our web catalog.
1/2 FM-48-8
3/4 FM-48-12
FC-01
1 FM-48-16 FC-11
.2812-.5625 1-3/8 FM-48-22 LS-1 Modular Fixturing
9/32-9/16 3/4 RC-01
7.20-14.00mm .7500-.7498 1-1/2 FM-48-24
1-3/4 FM-48-28 RK-01
2-1/8 FM-48-34 RK-11
*2-1/2 FM-48-40
*3 FM-48-48 An Ideal Answer To Many
1/2 FM-64-8 Workholding Problems
3/4 FM-64-12
1 FM-64-16 FC-02
.4688-.7812 1 1-3/8 FM-64-22 FC-12
LS-2
15/32-25/32 1.0000-.9998 1-1/2 FM-64-24 RC-02
12.00-19.50mm 1-3/4 FM-64-28
RK-02
2-1/8 FM-64-34 RK-12
2-1/2 FM-64-40
3 FM-64-48
3/4 FM-88-12
1 FM-88-16 FC-02
1-3/8 FM-88-22 FC-12
.7188-1.0625 1-3/8 1-1/2 FM-88-24 LS-2
23/32 – 1-1/16 1.3750-1.3747 RC-02
18.50-27.00mm 1-3/4 FM-88-28
2-1/8 FM-88-34 RK-02
2-1/2 FM-88-40 RK-12 • Great for temporary fixturing: one-time jobs, short
3 FM-88-48 or prototype production runs, trial fixturing or while
* INFO+: Counterbored, leaving correct drill-bearing permanent fixtures are built or repaired
length and clearance (see page 551 for bearing • Available in mini, standard and heavy sizes
length).
• Wide range of tooling plates and blocks, finish
ground, with multipurpose positioning holes
• Order as components, or in handy starter sets
13
See Pages 407-456
