Page 9 - PRYSMIAN

A brand of the

Certificate No 077c*
Certificate No 077p*,†

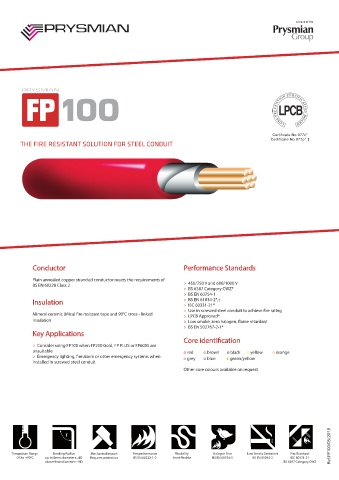

THE FIRE RESISTANT SOLUTION FOR STEEL CONDUIT

Conductor Performance Standards
CABLE DESCRIPTION Plain annealed copper stranded conductor meets the requirements of
BS EN 60228 Class 2 > 450/750 V and 600/1000 V
> BS 6387 Category CWZ*
> BS EN 60754-1
Insulation > BS EN 61034-2*,†
> IEC 60331-21*
> Use in screwed steel conduit to achieve fire rating
Mineral ceramic (Mica) fire resistant tape and 90°C cross - linked > LPCB Approved*
insulation > Low smoke, zero halogen, flame retardant
> BS EN 502767-2-1*
Key Applications
Core identification
> Consider using FP100 when FP200 Gold, FP PLUS or FP600S are
unsuitable o red o brown o black o yellow o orange
FIRE RESISTANT CABLES o grey o blue green/yellow LOW VOLTAGE
> Emergency lighting, fire alarm or other emergency systems when
installed in screwed steel conduit
Other core colours available on request
600/1000 V *
l

FP100 ®

Ref:FP100/05/2019

Temperature Range Bending Radius Mechanical impact Fire Performance Flexibility Halogen Free Low Smoke Emissions Fire Resistant
Fire Resistant
Bending Radius
Low Smoke Emissions
Halogen Free
Fire performance
Flexibility
Tempreture Range
Mechanical impact
-25 to +90°C
IEC 60331-21
-25 to +90ºC≠ up to 8mm diameter r=4D Requires protection BSEN60332-1-2 Semi-flexible BSEN50267-2-1 BS EN 61034-2 IEC 60331-21
BS EN 60332-1-2
Semi-flexible
Requires protection
up to 8mm diameter r=4D
BS EN 60754-1
BSEN61034-2
above 9mm diameter r=6D BS 6387 Category CWZ
BS6387 Category CW Z*
above 8mm diameter r=6D
EN50200 PH120*
BS8434-2 120min*
*When tested in Steel Conduit
