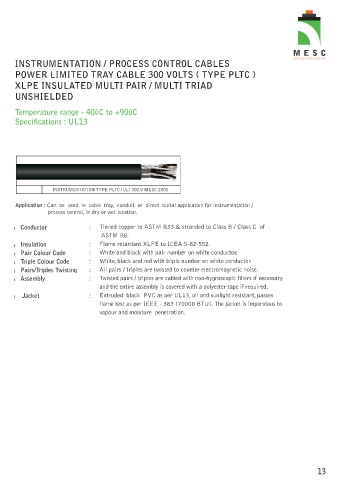

INSTRUMENTATION / PROCESS CONTROL CABLES

POWER LIMITED TRAY CABLE 300 VOLTS ( TYPE PLTC )
XLPE INSULATED MULTI PAIR / MULTI TRIAD
UNSHIELDED

Temperature range - 40ûC to +90ûC
Specifications : UL13

INSTRUMENTATION TYPE PLTC (UL) 300 V MESC 2005

Application : Can be used in cable tray, conduit or direct burial application for instrumentation /
process control, in dry or wet location.

l Conductor : Tinned copper to ASTM B33 & stranded to Class B / Class C of
ASTM B8.
l Insulation : Flame retardant XLPE to ICEA S-82-552.
l Pair Colour Code : White and black with pair number on white conductor.
l Triple Colour Code : White, black and red with triple number on white conductor.
l Pairs/Triples Twisting : All pairs / triples are twisted to counter electromagnetic noise.
l Assembly : Twisted pairs / triples are cabled with non-hygroscopic fillers if necessary

and the entire assembly is covered with a polyester tape if required.
l Jacket : Extruded black PVC as per UL13, oil and sunlight resistant, passes
flame test as per IEEE - 383 (70000 BTU). The jacket is impervious to
vapour and moisture penetration.

13
