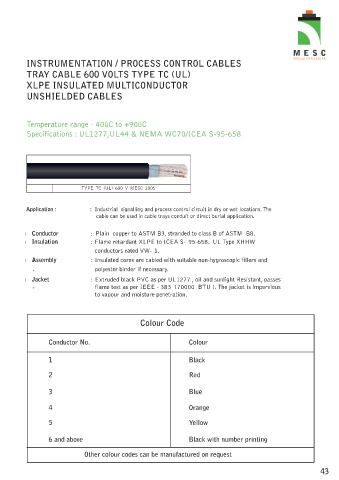

INSTRUMENTATION / PROCESS CONTROL CABLES
TRAY CABLE 600 VOLTS TYPE TC (UL)
XLPE INSULATED MULTICONDUCTOR
UNSHIELDED CABLES
Temperature range - 40ûC to +90ûC
Specifications : UL1277,UL44 & NEMA WC70/ICEA S-95-658
TYPE TC (UL) 600 V MESC 2005
Application : : Industrial signalling and process control circuit in dry or wet locations. The
cable can be used in cable trays conduit or direct burial application.
l Conductor : Plain copper to ASTM B3, stranded to class B of ASTM B8.
l Insulation : Flame retardant XLPE to ICEA S- 95-658. UL Type XHHW
conductors rated VW- 1.
l Assembly : Insulated cores are cabled with suitable non-hygroscopic fillers and
polyester binder if necessary.
l Jacket : Extruded black PVC as per UL1277 , oil and sunlight Resistant, passes
flame test as per IEEE - 383 (70000 BTU ). The jacket is impervious
to vapour and moisture penetration.
Colour Code
Conductor No. Colour
1 Black
2 Red
3 Blue
4 Orange
5 Yellow
6 and above Black with number printing
Other colour codes can be manufactured on request
