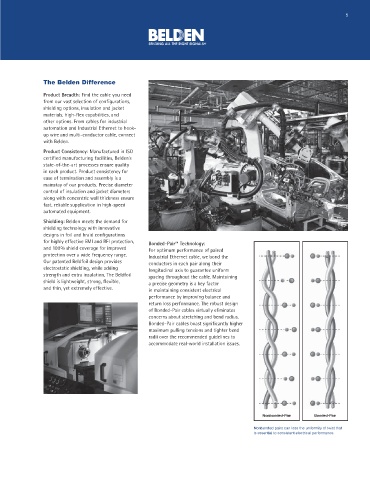

The Belden Difference

Product Breadth: Find the cable you need
from our vast selection of configurations,
shielding options, insulation and jacket
materials, high-flex capabilities, and
other options. From cables for industrial
automation and Industrial Ethernet to hook-
up wire and multi-conductor cable, connect
with Belden.
Product Consistency: Manufactured in ISO
certified manufacturing facilities, Belden’s
state-of-the-art processes ensure quality
in each product. Product consistency for
ease of termination and assembly is a
mainstay of our products. Precise diameter
control of insulation and jacket diameters
along with concentric wall thickness ensure
fast, reliable supplication in high-speed
automated equipment.
Shielding: Belden meets the demand for
shielding technology with innovative
designs in foil and braid configurations
for highly effective EMI and RFI protection,
Bonded-Pair™ Technology:
and 100% shield coverage for improved
For optimum performance of paired
protection over a wide frequency range.
Industrial Ethernet cable, we bond the
Our patented Beldfoil design provides
conductors in each pair along their
electrostatic shielding, while adding
longitudinal axis to guarantee uniform
strength and extra insulation. The Beldfoil
spacing throughout the cable. Maintaining
shield is lightweight, strong, flexible,
a precise geometry is a key factor
and thin, yet extremely effective.
in maintaining consistent electrical
performance by improving balance and
return loss performance. The robust design
of Bonded-Pair cables virtually eliminates
concerns about stretching and bend radius.
Bonded-Pair cables boast significantly higher
maximum pulling tensions and tighter bend
radii over the recommended guidelines to
accommodate real-world installation issues.

Nonbonded-Pair Bonded-Pair

Nonbonded pairs can lose the uniformity of twist that
is essential to consistent electrical performance.
