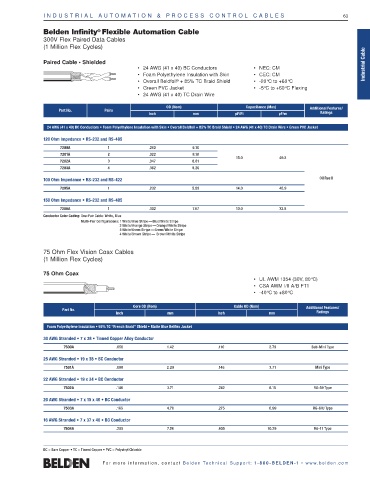

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 63

®
Belden Infinity Flexible Automation Cable
300V Flex Paired Data Cables
(1 Million Flex Cycles)

Paired Cable • Shielded Industrial Cable
• 24 AWG (41 x 40) BC Conductors • NEC: CM
• Foam Polyethylene Insulation with Skin • CEC: CM
®
• Overall Beldfoil + 85% TC Braid Shield • -20°C to +60°C
• Green PVC Jacket • -5°C to +60°C Flexing
• 24 AWG (41 x 40) TC Drain Wire

OD (Nom) Capacitance (Max) Additional Features/
Part No. Pairs
Inch mm pF/Ft pF/m Ratings
24 AWG (41 x 40) BC Conductors • Foam Polyethylene Insulation with Skin • Overall Beldfoil + 85% TC Braid Shield • 24 AWG (41 x 40) TC Drain Wire • Green PVC Jacket
120 Ohm Impedance • RS-232 and RS-485
7200A 1 .240 6.10
7201A 2 .322 8.18
15.0 49.2
7202A 3 .347 8.81
7203A 4 .362 9.20
Oil Res II
100 Ohm Impedance • RS-232 and RS-422
7205A 1 .232 5.89 14.0 45.9

150 Ohm Impedance • RS-232 and RS-485
7206A 1 .302 7.67 10.0 32.8
Conductor Color Coding: One-Pair Cable: White, Blue
Multi-Pair Configurations: 1 White/Blue Stripe — Blue/White Stripe
2 White/Orange Stripe — Orange/White Stripe
3 White/Green Stripe — Green/White Stripe
4 White/Brown Stripe — Brown/White Stripe

75 Ohm Flex Vision Coax Cables
(1 Million Flex Cycles)

75 Ohm Coax
• UL AWM 1354 (30V, 80°C)
• CSA AWM I/II A/B FT1
• -40°C to +80°C

Core OD (Nom) Cable OD (Nom) Additional Features/
Part No.
Inch mm Inch mm Ratings
Foam Polyethylene Insulation • 95% TC “French Braid” Shield • Matte Blue Belflex Jacket

30 AWG Stranded • 7 x 38 • Tinned Copper Alloy Conductor
7500A .056 1.42 .110 2.79 Sub-Mini Type

25 AWG Stranded • 19 x 38 • BC Conductor
7501A .090 2.29 .146 3.71 Mini Type
22 AWG Stranded • 19 x 34 • BC Conductor
7502A .146 3.71 .242 6.15 RG-59 Type
20 AWG Stranded • 7 x 15 x 40 • BC Conductor
7503A .185 4.70 .275 6.99 RG-6/U Type
16 AWG Stranded • 7 x 37 x 40 • BC Conductor
7504A .285 7.24 .405 10.29 RG-11 Type

BC = Bare Copper • TC = Tinned Copper • PVC = Polyvinyl Chloride

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
