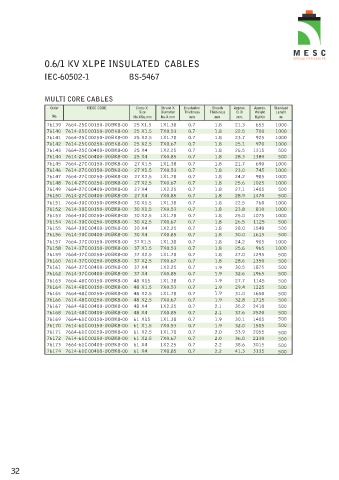

Page 36 - Power Cables Catalogue.pdf

0.6/1 KV XLPE INSULATED CABLES

IEC-60502-1 BS-5467

MULTI CORE CABLES
Order MESC CODE Cores X Strand X Insulation Sheath Approx. Approx. Standard
Size Diameter Thickness Thickness O. D Weight Lenght
No. No.XSq.mm No.X mm mm mm mm. Kg/Km m
76139 7664-25C00150-U0BK8-00 25 X1.5 1X1.38 0.7 1.8 21.3 655 1000
76140 7614-25C00150-U0BK8-00 25 X1.5 7X0.53 0.7 1.8 22.5 700 1000
76141 7664-25C00250-U0BK8-00 25 X2.5 1X1.78 0.7 1.8 23.7 925 1000
76142 7614-25C00250-U0BK8-00 25 X2.5 7X0.67 0.7 1.8 25.1 970 1000
76143 7664-25C00400-U0BK8-00 25 X4 1X2.25 0.7 1.8 26.5 1315 500
76144 7614-25C00400-U0BK8-00 25 X4 7X0.85 0.7 1.8 28.3 1380 500
X1.5
76145 7664-27C00150-U0BK8-00 27 1X1.38 0.7 1.8 21.7 690 1000
76146 7614-27C00150-U0BK8-00 27 X1.5 7X0.53 0.7 1.8 23.0 745 1000
76147 7664-27C00250-U0BK8-00 27 X2.5 1X1.78 0.7 1.8 24.2 985 1000
76148 7614-27C00250-U0BK8-00 27 X2.5 7X0.67 0.7 1.8 25.6 1025 1000
76149 7664-27C00400-U0BK8-00 27 X4 1X2.25 0.7 1.8 27.1 1405 500
76150 7614-27C00400-U0BK8-00 27 X4 7X0.85 0.7 1.8 28.9 1470 500
76151 7664-30C00150-U0BK8-00 30 X1.5 1X1.38 0.7 1.8 22.5 760 1000
76152 7614-30C00150-U0BK8-00 30 X1.5 7X0.53 0.7 1.8 23.8 810 1000
76153 7664-30C00250-U0BK8-00 30 X2.5 1X1.78 0.7 1.8 25.0 1075 1000
76154 7614-30C00250-U0BK8-00 30 X2.5 7X0.67 0.7 1.8 26.5 1125 500
76155 7664-30C00400-U0BK8-00 30 X4 1X2.25 0.7 1.8 28.0 1540 500
76156 7614-30C00400-U0BK8-00 30 X4 7X0.85 0.7 1.8 30.0 1615 500
76157 7664-37C00150-U0BK8-00 37 X1.5 1X1.38 0.7 1.8 24.2 905 1000
76158 7614-37C00150-U0BK8-00 37 X1.5 7X0.53 0.7 1.8 25.6 965 1000
76159 7664-37C00250-U0BK8-00 37 X2.5 1X1.78 0.7 1.8 27.0 1295 500
76160 7614-37C00250-U0BK8-00 37 X2.5 7X0.67 0.7 1.8 28.6 1350 500
76161 7664-37C00400-U0BK8-00 37 X4 1X2.25 0.7 1.9 30.5 1875 500
76162 7614-37C00400-U0BK8-00 37 X4 7X0.85 0.7 1.9 32.6 1965 500
76163 7664-48C00150-U0BK8-00 48 X 1.5 1X1.38 0.7 1.9 27.7 1145 500
76164 7614-48C00150-U0BK8-00 48 X1.5 7X0.53 0.7 1.9 29.4 1225 500
76165 7664-48C00250-U0BK8-00 48 X2.5 1X1.78 0.7 1.9 31.0 1650 500
76166 7614-48C00250-U0BK8-00 48 X2.5 7X0.67 0.7 1.9 32.8 1715 500
76167 7664-48C00400-U0BK8-00 48 X4 1X2.25 0.7 2.1 35.2 2410 500
76168 7614-48C00400-U0BK8-00 48 X4 7X0.85 0.7 2.1 37.6 2520 500
76169 7664-61C00150-U0BK8-00 61 X 1.5 1X1.38 0.7 1.9 30.1 1405 500
76170 7614-61C00150-U0BK8-00 61 X1.5 7X0.53 0.7 1.9 32.0 1505 500
76171 7664-61C00250-U0BK8-00 61 X2.5 1X1.78 0.7 2.0 33.9 2055 500
76172 7614-61C00250-U0BK8-00 61 X2.5 7X0.67 0.7 2.0 36.0 2130 500
76173 7664-61C00400-U0BK8-00 61 X4 1X2.25 0.7 2.2 38.6 3015 500
76174 7614-61C00400-U0BK8-00 61 X4 7X0.85 0.7 2.2 41.3 3135 500
