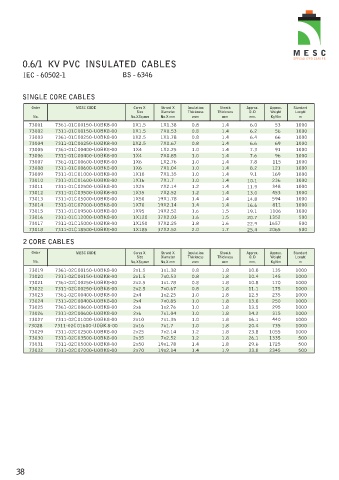

Page 42 - Power Cables Catalogue.pdf

0.6/1 KV PVC INSULATED CABLES

IEC - 60502-1 BS - 6346

SINGLE CORE CABLES
Order MESC CODE Cores X Strand X Insulation Sheath Approx. Approx. Standard
Size Diameter Thickness Thickness O. D Weight Lenght
No. No.XSq.mm No.X mm mm mm mm. Kg/Km m
73001 7361-01C00150-U0BK8-00 1X1.5 1X1.38 0.8 1.4 6.0 53 1000
73002 7311-01C00150-U0BK8-00 1X1.5 7X0.53 0.8 1.4 6.2 56 1000
73003 7361-01C00250-U0BK8-00 1X2.5 1X1.78 0.8 1.4 6.4 66 1000
73004 7311-01C00250-U0BK8-00 1X2.5 7X0.67 0.8 1.4 6.6 69 1000
73005 7361-01C00400-U0BK8-00 1X4 1X2.25 1.0 1.4 7.3 91 1000
73006 7311-01C00400-U0BK8-00 1X4 7X0.85 1.0 1.4 7.6 96 1000
73007 7361-01C00600-U0BK8-00 1X6 1X2.76 1.0 1.4 7.8 115 1000
73008 7311-01C00600-U0BK8-00 1X6 7X1.04 1.0 1.4 8.2 121 1000
73009 7311-01C01000-U0BK8-00 1X10 7X1.35 1.0 1.4 9.1 169 1000
73010 7311-01C01600-U0BK8-00 1X16 7X1.7 1.0 1.4 10.1 236 1000
73011 7311-01C02500-U0BK8-00 1X25 7X2.14 1.2 1.4 11.9 348 1000
73012 7311-01C03500-U0BK8-00 1X35 7X2.52 1.2 1.4 13.0 453 1000
73013 7311-01C05000-U0BK8-00 1X50 19X1.78 1.4 1.4 14.8 594 1000
73014 7311-01C07000-U0BK8-00 1X70 19X2.14 1.4 1.4 16.6 811 1000
73015 7311-01C09500-U0BK8-00 1X95 19X2.52 1.6 1.5 19.1 1106 1000
73016 7311-01C12000-U0BK8-00 1X120 37X2.03 1.6 1.5 20.7 1352 500
73017 7311-01C15000-U0BK8-00 1X150 37X2.25 1.8 1.6 22.9 1657 500
73018 7311-01C18500-U0BK8-00 1X185 37X2.52 2.0 1.7 25.4 2065 500
2 CORE CABLES

Order MESC CODE Cores X Strand X Insulation Sheath Approx. Approx. Standard
Size Diameter Thickness Thickness O. D Weight Lenght
No. No.XSq.mm No.X mm mm mm mm. Kg/Km m
73019 7361-02C00150-U0BK8-00 2x1.5 1x1.38 0.8 1.8 10.0 135 1000
73020 7311-02C00150-U0BK8-00 2x1.5 7x0.53 0.8 1.8 10.4 145 1000
73021 7361-02C00250-U0BK8-00 2x2.5 1x1.78 0.8 1.8 10.8 170 1000
73022 7311-02C00250-U0BK8-00 2x2.5 7x0.67 0.8 1.8 11.1 175 1000
73023 7361-02C00400-U0BK8-00 2x4 1x2.25 1.0 1.8 12.5 235 1000
73024 7311-02C00400-U0BK8-00 2x4 7x0.85 1.0 1.8 13.0 250 1000
73025 7361-02C00600-U0BK8-00 2x6 1x2.76 1.0 1.8 13.5 295 1000
73026 7311-02C00600-U0BK8-00 2x6 7x1.04 1.0 1.8 14.2 315 1000
73027 7311-02C01000-U0BK8-00 2x10 7x1.35 1.0 1.8 16.1 440 1000
73028 7311-02C01600-UOBK 8-00 2x16 7x1.7 1.0 1.8 20.4 735 1000
73029 7311-02C02500-U0BK8-00 2x25 7x2.14 1.2 1.8 23.8 1055 1000
73030 7311-02C03500-U0BK8-00 2x35 7x2.52 1.2 1.8 26.1 1335 500
73031 7311-02C05000-U0BK8-00 2x50 19x1.78 1.4 1.8 29.6 1725 500
73032 7311-02C07000-U0BK8-00 2x70 19x2.14 1.4 1.9 33.8 2345 500
