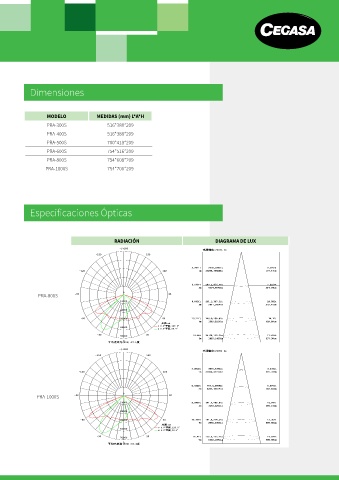

Page 129 - Catalogo Iluminacion Vial

Dimensiones

MODELO MEDIDAS (mm) L*A*H
PRA-300S 516*388*209
PRA-400S 516*388*209
PRA-500S 700*418*209
PRA-600S 754*516*209
PRA-800S 754*608*209
PRA-1000S 754*700*209

Especificaciones Ópticas

RADIACIÓN DIAGRAMA DE LUX
-/+180
光通输出:23426 lm
-150 150
3.281ft 2350,3306fc 3.526ft
-120 120 1m 25295,35582lx 107.47cm

6.562ft 587.5,826.4fc 7.052ft
2m 6324,8896lx 214.94cm
0
PRA-800S -90 90
11000 9.843ft 261.1,367.3fc 10.58ft
3m 2811,3954lx 322.42cm
22000
-60 33000 60 13.12ft 146.9,206.6fc 14.1ft
4m 1581,2224lx 429.89cm
光强
光强:cd:cd
V 0.0°平面,137.9°
44000
H 0.0°平面,56.4°
-30 30 16.4ft 94.00,132.2fc 17.63ft
55000
5m 1012,1423lx 537.36cm
0
平均光束角(50%):97.1度
-/+180
光通输出:26954 lm
-150 150
3.281ft 3070,4392fc 3.337ft
-120 120 1m 33048,47275lx 101.72cm
6.562ft 767.6,1098fc 6.675ft
2m 8262,11819lx 203.44cm
PRA-1000S -90 0 90
14000 9.843ft 341.1,488.0fc 10.01ft
3m 3672,5253lx 305.16cm
28000
-60 42000 60 13.12ft 191.9,274.5fc 13.35ft
4m 2066,2955lx 406.88cm
光强
光强:cd:cd
V 0.0°平面,133.4°
56000
H 0.0°平面,53.4°
-30 30 16.4ft 122.8,175.7fc 16.69ft
70000
5m 1322,1891lx 508.60cm
0
平均光束角(50%):93.4度
