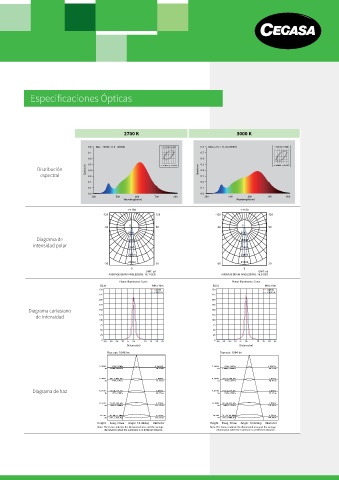

Especificaciones Ópticas

2700 K 3000 K

0.8 Max=10656 [1.0=20000] 5.45SDCM F2700K 0.8 Max=7577 [1.0=20000] 3.56SDCM F3000K
0.7 0.7
0.6 0.6
Distribución Spectrum 0.5 x=0.4675 y=0.4138 Spectrum 0.5 x=0.4439 y=0.4177
0.4
0.4
espectral 0.3 0.3
0.2 0.2
0.1 0.1
0.0 0.0
380 500 600 700 800 380 500 600 700 800
Wavelength(nm) Wavelength(nm)
-/+180 -/+180
-120 120 -120 120
0 0
-90 90 -90 90
5000 5000
Diagrama de 10000 10000
intensidad polar 15000 15000

20000 20000
-30 25000 30 -30 25000 30
0 0
UNIT: cd UNIT: cd
AVERAGE BEAM ANGLE(50%): 16.1 DEG AVERAGE BEAM ANGLE(50%): 16.6 DEG
Planar Illuminance Curve Planar Illuminance Curve
E(LX) MH=10m E(LX) MH=10m
250 C0/180 250 C0/180
C90/270 C90/270
225 225
200 200
175 175
Diagrama cartesiano 150 150
de intensidad 125 125
100 100
75 75
50 50
25 25
0 -25- 20 -15- 10 -5 05 10 15 20 25 0 -25- 20 -15- 10 -5 05 10 15 20 25
Distance(m) Distance(m)
Flux out: 1046 lm Flux out: 1094 lm

Diagrama de haz

Height Eavg, Emax Angle: 16.46deg Diameter Height Eavg, Emax Angle: 16.62deg Diameter
Note: The Curves indicate the illuminated area and the average Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance. illumination when the Luminaire is at different distance.
