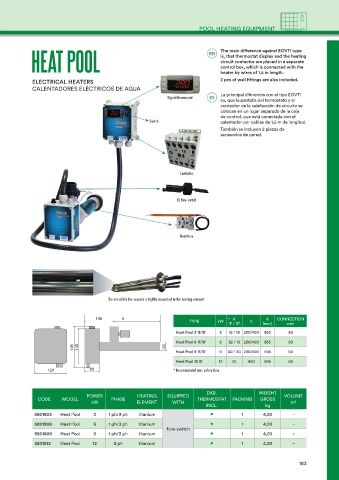

Page 183 - Catalogue IML-VP 2024

POOL HEATING EQUIPMENT

HEAT POOL EN The main difference against EOVTi type

is, that thermostat display and the heating
circuit contactor are placed in a separate
control box, which is connected with the

2 pcs of wall fittings are also included.

ELECTRICAL HEATERS heater by wires of 1,5 m length.
CALENTADORES ELÉCTRICOS DE AGUA
La principal diferencia con el tipo EOVTi
Digital thermostat ES
es, que la pantalla del termostato y el
contactor de la calefacción de circuito se
colocan en un lugar separado de la caja
de control, que está conectada con el
Switch calentador por cables de 1,5 m de longitud.
También se incluyen 2 piezas de
accesorios de pared.

Contactor

El. flow switch

Heat fuse

The vessel for the sensors is tightly connected to the heating element

130 a * A A CONNECTION
TYPE kW V
1F / 3F (mm) mm
Heat Pool 3 1f/3f 3 16 / 10 230/400 355 50
Heat Pool 6 1f/3f 6 32 / 16 230/400 355 50
195 145 50
Heat Pool 9 1f/3f 9 50 / 20 230/400 495 50

Heat Pool 12 3f 12 25 400 495 50
120 80 * Recommended min. safety fuse

DIGI. WEIGHT
POWER HEATING EQUIPPED VOLUME
CODE MODEL PHASE THERMOSTAT PACKING GROSS
kW ELEMENT WITH m3
INCL. kg
5801803 Heat Pool 3 1 ph/3 ph titanium • 1 4,20 –
5801806 Heat Pool 6 1 ph/3 ph titanium • 1 4,20 –
flow switch
5801809 Heat Pool 9 1 ph/3 ph titanium • 1 4,20 –
5801812 Heat Pool 12 3 ph titanium • 1 4,20 –
