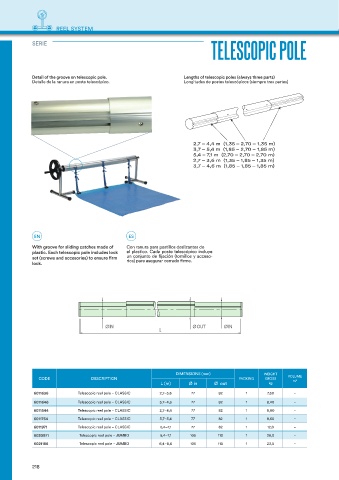

Page 218 - Catalogue IML-VP 2024
P. 218
REEL SYSTEM
TELESCOPIC POLE
SERIE
Detail of the groove on telescopic pole. Lengths of telescopic poles (always three parts)
Detalle de la ranura en poste telescópico. Longitudes de postes telescópicos (siempre tres partes)
2,7 – 4,4 m (1,35 – 2,70 – 1,35 m)
3,7 – 5,4 m (1,85 – 2,70 – 1,85 m)
5,4 – 7,1 m (2,70 – 2,70 – 2,70 m)
2,7 – 3,6 m (1,35 – 1,85 – 1,35 m)
3,7 – 4,6 m (1,85 – 1,85 – 1,85 m)
EN ES
With groove for sliding catches made of Con ranura para pestillos deslizantes de
plastic. Each telescopic pole includes lock el plastico. Cada poste telescópico incluye
set (screws and accesories) to ensure firm un conjunto de fijación (tornillos y acceso-
rios) para asegurar cerrado firme.
lock.
DIMENSIONS (mm) WEIGHT
CODE DESCRIPTION PACKING GROSS VOLUME
m3
L (m) Ø in Ø out kg
6011636 Telescopic reel pole – CLASSIC 2,7–3,6 77 82 1 7,60 –
6011646 Telescopic reel pole – CLASSIC 3,7–4,6 77 82 1 8,40 –
6011544 Telescopic reel pole – CLASSIC 2,7–4,4 77 82 1 8,00 –
6011754 Telescopic reel pole – CLASSIC 3,7–5,4 77 82 1 9,60 –
6011971 Telescopic reel pole – CLASSIC 5,4–7,1 77 82 1 12,0 –
6020971 Telescopic reel pole – JUMBO 5,4–7,1 105 110 1 20,0 –
6021186 Telescopic reel pole – JUMBO 6,4–8,6 105 110 1 23,0 –
218
