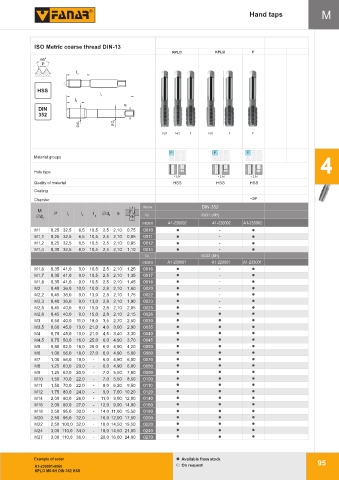

P. 99
Hand taps M
ISO Metric coarse thread DIN-13
Gwint metryczny drobnozwojny ISO DIN-13
KPL/3 KPL/2 F
60
E
S
H
HSSE 0
S
P
M
PM
P
l 3
HSS
l 1
l 2
a
DIN
352
d 1 d 2 3 3
Nr1 Nr2 F Nr1 F F
P M K P M K P M K
Material groups N S H N S H N S H
4
Hole type
< 2,5d < 2,5d < 2,5d
Quality of material HSS HSS HSS
Coating
Chamfer ~2P
Norm DIN-352
M a INDEX
Tol.
Ćd P l 1 l 2 l 3 Ćd 2 Tol. ISO1 (4H)
1
INDEX A1-230002 A1-220002 A1-233002
M1 0,25 32,5 6,5 10,5 2,5 2,10 0,75 0010 -
M1,1 0,25 32,5 6,5 10,5 2,5 2,10 0,85 0011 -
M1,2 0,25 32,5 6,5 10,5 2,5 2,10 0,95 0012 -
M1,4 0,30 32,5 8,0 10,5 2,5 2,10 1,10 0014 -
Tol. ISO2 (6H)
INDEX A1-230001 A1-220001 A1-233001
M1,6 0,35 41,0 9,0 10,5 2,5 2,10 1,25 0016 -
M1,7 0,35 41,0 9,0 10,5 2,5 2,10 1,35 0017 -
M1,8 0,35 41,0 9,0 10,5 2,5 2,10 1,45 0018 -
M2 0,40 36,0 10,0 10,0 2,8 2,10 1,60 0020 -
M2,2 0,45 36,0 9,0 13,0 2,8 2,10 1,75 0022 -
M2,3 0,40 36,0 9,0 13,0 2,8 2,10 1,90 0023 -
M2,5 0,45 40,0 9,0 15,0 2,8 2,10 2,05 0025 -
M2,6 0,45 40,0 9,0 15,0 2,8 2,10 2,15 0026
M3 0,50 40,0 11,0 18,0 3,5 2,70 2,50 0030
M3,5 0,60 45,0 13,0 21,0 4,0 3,00 2,90 0035
M4 0,70 45,0 13,0 21,0 4,5 3,40 3,30 0040
M4,5 0,75 50,0 16,0 25,0 6,0 4,90 3,70 0045
M5 0,80 52,0 16,0 26,0 6,0 4,90 4,20 0050
M6 1,00 56,0 18,0 27,0 6,0 4,90 5,00 0060
M7 1,00 56,0 18,0 - 6,0 4,90 6,00 0070
M8 1,25 63,0 20,0 - 6,0 4,90 6,80 0080
M9 1,25 63,0 20,0 - 7,0 5,50 7,80 0090
M10 1,50 70,0 22,0 - 7,0 5,50 8,50 0100
M11 1,50 70,0 22,0 - 8,0 6,20 9,50 0110
M12 1,75 80,0 24,0 - 9,0 7,00 10,20 0120
M14 2,00 80,0 26,0 - 11,0 9,00 12,00 0140
M16 2,00 80,0 27,0 - 12,0 9,00 14,00 0160
M18 2,50 95,0 30,0 - 14,0 11,00 15,50 0180
M20 2,50 95,0 32,0 - 16,0 12,00 17,50 0200
M22 2,50 100,0 32,0 - 18,0 14,50 19,50 0220
M24 3,00 110,0 34,0 - 18,0 14,50 21,00 0240
M27 3,00 110,0 36,0 - 20,0 16,00 24,00 0270
Example of order Available from stock
95
A1-230001-0060 On request
KPL/3 M6-6H DIN-352 HSS
