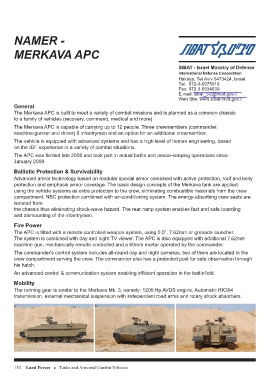

Page 130 - Israel Defense Directory 2013-14

NAMER -
MERKAVA APC

SIBAT - Israel Ministry of Defense

International Defense Cooperation

Hakirya, Tel Aviv 6473424, Israel
Tel: 972-3-6975916
Fax: 972-3-6934639
E-mail: sibat_bic@mod.gov.il
Web Site: www.sibat.mod.gov.il

General
The Merkava APC is built to meet a variety of combat missions and is planned as a common chassis
to a family of vehicles (recovery, command, medical and more)
The Merkava APC is capable of carrying up to 12 people. Three crewmembers (commander,
machine-gunner and driver) 8 infantrymen and an option for an additional crewmember.
The vehicle is equipped with advanced systems and has a high level of human engineering, based
on the IDF experience in a variety of combat situations.
The APC was fielded late 2008 and took part in actual battle and peace-keeping operations since
January 2009.

Ballistic Protection & Survivability
Advanced armor technology based on modular special armor combined with active protection, roof and belly
protection and emphasis armor coverage. The basic design concepts of the Merkava tank are applied:
using the vehicle systems as extra protection to the crew, eliminating combustible materials from the crew
compartment. NBC protection combined with air-conditioning system. The energy-absorbing crew seats are
isolated from
the chassis thus eliminating shock-wave hazard. The rear ramp system enables fast and safe boarding
and dismounting of the infantrymen.

Fire Power
The APC is fitted with a remote controlled weapon system, using 0.5", 7.62mm or grenade launcher.
The system is combined with day and night TV viewer. The APC is also equipped with additional 7.62mm
machine gun, mechanically remote controlled and a 60mm mortar operated by the commander.
The commander's control system includes all-round day and night cameras, two of them are located in the
crew compartment serving the crew. The commander also has a protected post for safe observation through
his hatch.
An advanced control & communication system enabling efficient operation in the battlefield.

Mobility
The running gear is similar to the Merkava Mk. 3, namely: 1200 Hp AVDS engine, Automatic RK304
transmission, external mechanical suspension with independent road arms and rotary shock absorbers.
