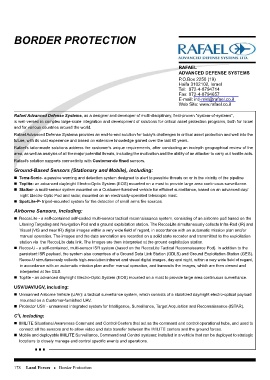

Page 178 - Israel Defense Directory 2013-14

BORDER PROTECTION

RAFAEL
ADVANCED DEFENSE SYSTEMS
P.O.Box 2250 (19)
Haifa 3102102, Israel
Tel: 972-4-8794714
Fax: 972-4-8794657
E-mail: intl-mkt@rafael.co.il
Web Site: www.rafael.co.il

Rafael Advanced Defense Systems, as a designer and developer of multi-disciplinary, field-proven "system-of-systems",
is well-versed in complex large-scale integration and development of solutions for critical asset protection programs, both for Israel
and for various countries around the world.
Rafael Advanced Defense Systems provides an end-to-end solution for today's challenges in critical asset protection and well into the
future, with its vast experience and based on extensive knowledge gained over the last 60 years.
Rafael's tailor-made solutions address the customer's unique requirements, after conducting an in-depth geographical review of the
area, as well as analysis of all the major potential threats, including the motivation and the ability of an attacker to carry out hostile acts.
Rafael's solution supports connectivity with Customer-de fined sensors.

Ground-Based Sensors (Stationary and Mobile), including:

„ Terra-Sonic- a passive warning and detection system designed to alert to possible threats on or in the vicinity of the pipeline
„ Toplite- an advanced day/night Electro-Optic System (EOS) mounted on a mast to provide large area continuous surveillance.
„ Stalker- a multi-sensor system mounted on a Customer-furnished vehicle for efficient surveillance, based on an advanced day/

night Electro-Optic Pod and radar, mounted on an electrically-operated telescopic mast.
„ SpotLite-P- tripod-mounted system for the detection of small arms fire sources.

Airborne Sensors, including:

„ RecceLite - a self-contained self-cooled multi-sensor tactical reconnaissance system, consisting of an airborne pod based on the
Litening Targeting and Navigation Pod and a ground exploitation station. The RecceLite simultaneously collects Infra-Red (IR) and
Visual (VIS and near IR) digital images within a very wide field of regard, in accordance with an automatic mission plan and/or
manual operation. The images and the data annotation are recorded on a solid state recorder and transmitted to the exploitation
station via the RecceLite data link. The Images are then interpreted at the ground exploitation station.

„ Recce-U - a self-contained, multi-sensor ISR system (based on the RecceLite Tactical Reconnaissance Pod). In addition to the
persistent ISR payload, the system also comprises of a Ground Data Link Station (GDLS) and Ground Exploitation Station (GES).
Recce-U simultaneously collects high-resolution infrared and visual digital images, day and night, within a very wide field of regard,
in accordance with an automatic mission plan and/or manual operation, and transmits the images, which are then viewed and
interpreted at the GES.

„ Toplite - an advanced day/night Electro-Optic System (EOS) mounted on a mast to provide large area continuous surveillance.

USV/UAV/UGV, including:
„ Unmanned Airborne Vehicle (UAV): a tactical surveillance system, which consists of a stabilized day/night electro-optical payload

mounted on a Customer-furnished UAV.
„ Protector USV - unmanned integrated system for Intelligence, Surveillance, Target Acquisition and Reconnaissance (ISTAR).

C4I, including:
„ IMILITE Situational Awareness Command and Control Centers that act as the command and control operational hubs, and used to

connect all the sensors and to allow video and data transfer between the IMILITE centers and the ground forces.
„ Mobile and deployable IMILITE Surveillance, Command and Control systems: installed in a vehicle that can be deployed to strategic

locations to closely manage and control specific events and operations.
