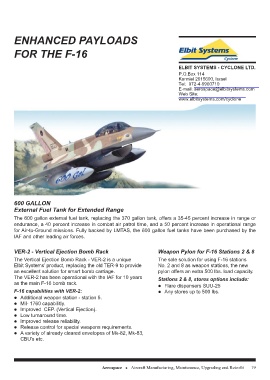

Page 19 - Israel Defense Directory 2013-14

ENHANCED PAYLOADS
FOR THE F-16

ELBIT SYSTEMS - CYCLONE LTD.

P.O.Box 114
Karmiel 2015600, Israel
Tel: 972-4-9960710
E-mail: aerospace@elbitsystems.com
Web Site:
www.elbitsystems.com/cyclone

600 GALLON
External Fuel Tank for Extended Range

The 600 gallon external fuel tank, replacing the 370 gallon tank, offers a 35-45 percent increase in range or
endurance, a 40 percent increase in combat air patrol time, and a 50 percent increase in operational range
for Air-to-Ground missions. Fully backed by LMTAS, the 600 gallon fuel tanks have been purchased by the
IAF and other leading air forces.

VER-2 - Vertical Ejection Bomb Rack Weapon Pylon for F-16 Stations 2 & 8

The Vertical Ejection Bomb Rack - VER-2 is a unique The sole solution for using F-16 stations
Elbit Systems’ product, replacing the old TER-9 to provide No. 2 and 8 as weapon stations, the new
an excellent solution for smart bomb carriage. pylon offers an extra 500 lbs. load capacity.
The VER-2 has been operational with the IAF for 10 years
as the main F-16 bomb rack. Stations 2 & 8, stores options include:
Flare dispensers SUU-25
F-16 capabilities with VER-2: Any stores up to 500 lbs.

Additional weapon station - station 5.
Mil- 1760 capabilitiy.
Improved CEP. (Vertical Ejection).
Low turnaround time.
Improved release reliability.
Release control for special weapons requirements.
A variety of already cleared envelopes of Mk-82, Mk-83,
CBU's etc.
