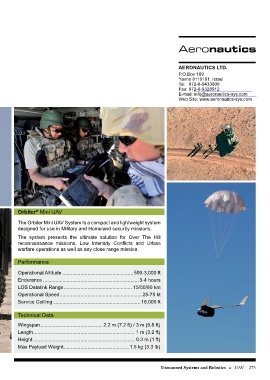

Page 273 - Israel Defense Directory 2013-14

AERONAUTICS LTD.
P.O.Box 169
Yavne 8110101, Israel
Tel: 972-8-9433600
Fax: 972-8-9328912
E-mail: info@aeronautics-sys.com
Web Site: www.aeronautics-sys.com

Orbiter® Mini UAV
The Orbiter Mini UAV System Is a compact and lightweight system
designed for use in Military and Homeland security missions.
The system presents the ultimate solution for Over The Hill
reconnaissance missions, Low Intensity Conflicts and Urban
warfare operations as well as any close range mission.
Performance
Operational Altitude ................................................... 500-3,000 ft
Endurance ..................................................................... 3-4 hours
LOS Datalink Range ................................................. 15/50/80 km
Operational Speed........................................................... 25-75 kt
Service Ceilling ............................................................... 18,000 ft
Technical Data
Wingspan............................................. 2.2 m (7.2 ft) / 3 m (9.8 ft)
Length......................................................................... 1 m (3.2 ft)
Height ......................................................................... 0.3 m (1 ft)
Max Payload Weight...............................................1.5 kg (3.3 lb)

Unmanned Systems and Robotics z UAV 273
