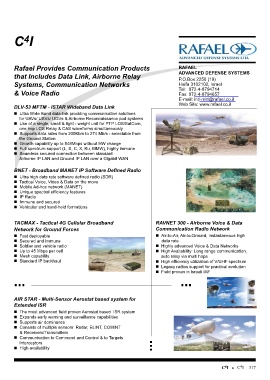

P. 317

C4I

Rafael Provides Communication Products                              RAFAEL
that Includes Data Link, Airborne Relay                             ADVANCED DEFENSE SYSTEMS
Systems, Communication Networks
                                                                    P.O.Box 2250 (19)
& Voice Radio                                                       Haifa 3102102, Israel
                                                                    Tel: 972-4-8794714
DLV-53 MFTM - ISTAR Wideband Data Link                              Fax: 972-4-8794657
                                                                    E-mail: intl-mkt@rafael.co.il
„ Ultra Wide Band data-link providing communication solutions       Web Site: www.rafael.co.il
   for UAVs/ USVs/ UGVs & Airborne Reconnaissance pod systems

„ Use of a single, small & light - weight unit for PTP LOS/SatCom,
   one hop LOS Relay & CAS waveforms simultaneously

„ Supports data rates from 200Kb/s to 274 Mb/s - selectable from
   the Ground Station

„ Growth capability up to 548Mbps without HW change
„ Full spectrum support (L, S, C, X, Ku, MMW), highly immune
„ Seamless secured connection between standard

   Airborne IP LAN and Ground IP LAN over a Gigabit WAN

BNET - Broadband MANET IP Software Defined Radio

„ Ultra high data rate software defined radio (SDR)
„ Tactical Voice, Video & Data on the move
„ Mobile Ad-hoc network (MANET)
„ Unique spectral efficiency features
„ IP Radio
„ Immune and secured
„ Vehicular and hand-held formations

TACMAX - Tactical 4G Cellular Broadband                             RAVNET 300 - Airborne Voice & Data

Network for Ground Forces                                           Communication Radio Network

„ Fast deployable                                                   „ Air-to-Air, Air-to-Ground, instantaneous high
„ Secured and immune                                                    data rate
„ Soldier and vehicle radio
„ Up to 45 Mbps per cell                                            „ Highly advanced Voice & Data Networks
„ Mesh capability                                                   „ High Availability: Long range communication,
„ Standard IP backhaul                                               auto relay via multi hops
                                                                    „ High efficiency utilization of V/UHF spectrum
                                                                    „ Legacy radios support for practical evolution
                                                                    „ Field proven in Israeli IAF

AIR STAR - Multi-Sensor Aerostat based system for

Extended ISR

„ The most advanced field proven Aerostat based ISR system
„ Expands early warning and surveillance capabilities
„ Supports air dominance
„ Consists of multiple sensors: Radar, ELINT, COMINT

   & Receivers/Transmitters
„ Communication to Command and Control & to Targets
 Interceptors
„ High availability

                                                                    C4I z C4I 317
