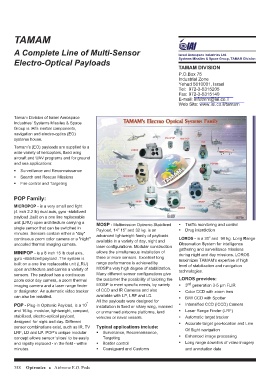

Page 358 - Israel Defense Directory 2013-14

TAMAM
A Complete Line of Multi-Sensor
Electro-Optical Payloads
Tamam Division of Israel Aerospace
Industries’ Systems Missiles & Space
Group is IAI’s inertial components,
navigation and electro-optics (EO)
systems house.
Tamam’s (EO) payloads are supplied to a
wide variety of helicopters, fixed wing
aircraft and UAV programs and for ground
and sea applications:
Surveillance and Reconnaissance
Search and Rescue Missions
Fire control and Targeting
POP Family:
MICROPOP - is a very small and light
(4 inch 2.2 lb) dual axis, gyro -stabilized
payload ,built on a one line replaceable
unit (LRU) open architecture carrying a
single sensor that can be switched in
minutes. Sensors contain either a "day"
continuous zoom color camera or a "night"
uncooled thermal imaging camera.
MINIPOP - is a 8 inch 15 lb dual axis,
gyro -stabilized payload .The system is
built on a one line replaceable unit (LRU)
open architecture and carries a variety of
sensors. The payload has a continuous
zoom color day camera, a zoom thermal
imaging camera and a laser range finder
or designator. An automatic video tracker
can also be installed.
POP - Plug-in Optronic Payload, is a 10”
and 16 kg. modular, lightweight, compact,
stabilized, electro-optical payload,
designed for night and day. Different
sensor combinations exist, such as IR, TV
LRF, LD and LP. POP’s unique modular
concept allows sensor ‘slices’ to be easily
and rapidly replaced - in the field - within
minutes.
358 Optronics Airborne E.O. Pods
MOSP - Multimission Optronic Stabilized
Payload, 14” 15” and 32 kg. is an
advanced lightweight family of payloads
available in a variety of day, night and
laser configurations. Modular construction
allows the simultaneous installation of
three or more sensors. Excellent long
range performance is achieved by
MOSP’s very high degree of stabilization.
Many different sensor configurations give
the customer the possibility of tailoring the
MOSP to meet specific needs, by variety
of CCD and IR Cameras and also
available with LP, LRF and LD.
All the payloads were designed for
installation in fixed or rotary wing, manned
or unmanned airborne platforms, land
vehicles or naval vessels.
Typical applications include:
Surveilance, Reconnaissance,
Targeting
Border control
Coastguard and Customs
Israel Aerospace Industries Ltd.
Systems Missiles & Space Group, TAMAM Division
TAMAM DIVISION
P.O.Box 75
Industrial Zone
Yehud 5610001, Israel
Tel: 972-3-5315205
Fax: 972-3-5315140
E-mail: infotmm@iai.co.il
Web Site: www.iai.co.il/tamam
Traffic monitoring and control
Drug interdiction
LOROS - is a 30” and 90 kg. Long Range
Observation System for intelligence
gathering and surveillance missions
during night and day missions. LOROS
maximizes TAMAM’s expertise of high
level of stabilization and navigation
technologies.
LOROS provides:
3rd generation 3-5 µm FLIR
Color CCD with zoom lens
B/W CCD with Spotter
Intensified CCD (ICCD) Camera
Laser Range Finder (LRF)
Automatic target tracker
Accurate target geo-location and Line
Of Sight navigation
Enhanced image processing
Long range downlink of video imagery
and annotation data
