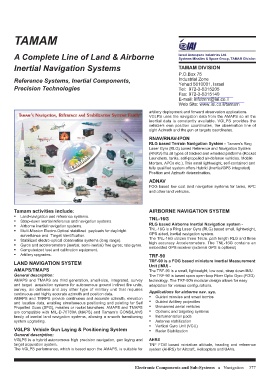

Page 377 - Israel Defense Directory 2013-14

TAMAM

A Complete Line of Land & Airborne Israel Aerospace Industries Ltd.
Systems Missiles & Space Group, TAMAM Division

Inertial Navigation Systems TAMAM DIVISION

Reference Systems, Inertial Components, P.O.Box 75
Precision Technologies Industrial Zone
Yehud 5610001, Israel
Tel: 972-3-5315205
Fax: 972-3-5315140
E-mail: infotmm@iai.co.il
Web Site: www.iai.co.il/tamam

artillery deployment and forward observation applications.
VGLPS uses the navigation data from the AMAPS so all the
inertial data is constantly available. VGLPS provides the
vehicle's own position coordinates, the observation line of
sight Azimuth and the gun or targets coordinates.

RNAV/RNAV-IPON

RLG based Terrain Navigation System - Tamam's Ring
Laser Gyro (RLG) based Reference and Navigation System
(RNAV) fits all types of tracked and wheeled platforms (Rocket
Launchers, tanks, self-propelled air-defense vehicles, Mobile
Mortars, APCs etc.). This small lightweight, self-contained and
fully qualified system offers Hybrid (Inertial/GPS integrated)
Position and Azimuth determination.

ADNAV

FOG based low cost land navigation systems for tanks, APC
and other land vehicles.

Tamam activities include: AIRBORNE NAVIGATION SYSTEM

Land-navigation and reference systems. TNL-16G
Strap-down inertial reference and navigation systems.
Airborne inertial navigation systems. RLG based Airborne Inertial Navigation system -
Multi-Mission Electro-Optical stabilized payloads for day/night TNL-16G is a Ring Laser Gyro (RLG) based small, lightweight,
surveillance and Target Identification. GPS aided, inertial navigation system.
Stabilized electro-optical observation systems (long range). The TNL-16G utilizes three 16cm. path length RLG and three
Gyros and accelerometers (inertial; semi-inertial) free gyros; rate gyros. high accuracy Accelerometers. The TNL-16G contains an
Computerized test and calibration equipment. embedded GPS receiver (external GPS is optional)
Artillery upgrades.
TRF-90
LAND NAVIGATION SYSTEM
TRF-90 is a FOG based miniature Inertial Measurement
AMAPS/TMAPS Unit (IMU) -
The TRF-90 is a small, lightweight, low cost, strap down IMU.
General description: The TRF-90 is based upon open-loop Fiber Optic Gyro (FOG)
AMAPS and TMAPS are third generation, small-size, integrated, survey technology. The TRF-90's modular design allows for easy
and target acquisition systems for autonomous ground indirect fire units, adaptation for various configurations.
survey, air defense and any other type of military unit that requires
continuous and highly accurate azimuth and position data. Applications for airborne nav. sys.
AMAPS and TMAPS provide continuous and accurate azimuth, elevation Guided missiles and smart bombs
and location data, enabling simultaneous positioning and pointing for Self Guided Artillery projectiles
Propelled Guns (SPG), missiles or rocket launchers. AMAPS and TMAPS Unmanned aerial vehicles
are compatible with MIL-D-70789A (MAPS) and Tamam's GONS/LANS Optronic and targeting systems
family of inertial land navigation systems, allowing a smooth transitioning Instrumentation pods
system upgrading. Antenna stabilization
Vertical Gyro Unit (VGU)
VGLPS Vehicle Gun Laying & Positioning System Radar Stabilization

General description: AHRS
VGLPS is a hybrid autonomous high precision navigation, gun laying and TNF FOG based miniature attitude, heading and reference
target acquisition system. system (AHRS) for Aircraft, Helicopters and UAVs.
The VGLPS performance, which is based upon the AMAPS, is suitable for

Electronic Components and Sub-Systems Navigation 377
