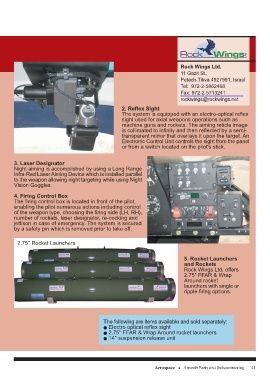

Page 41 - Israel Defense Directory 2013-14

Rock Wings Ltd.
11 Gazit St.,
Petach-Tikva 4927991, Israel
Tel: 972-2-5862468
Fax: 972-2-5713241
rockwings@rockwings.net

2. Reflex Sight
The system is equipped with an electro-optical reflex
sight used for axial weapons operations such as
machine guns and rockets. The aiming reticle image
is collimated to infinity and then reflected by a semi-
transparent mirror that overlays it upon the target. An
Electronic Control Unit controls the sight from the panel
or from a switch located on the pilot's stick.

3. Laser Designator
Night aiming is accomplished by using a Long Range
Infra-Red Laser Aiming Device which is installed parallel
to the weapon allowing night targeting while using Night
Vision Goggles.

4. Firing Control Box
The firing control box is located in front of the pilot,
enabling the pilot numerous actions including control
of the weapon type, choosing the firing side (LH, RH),
number of rockets, laser designator, re-cocking and
jettison in case of emergency. The system is secured
by a safety pin which is removed prior to take off.

2.75" Rocket Launchers

5. Rocket Launchers
and Rockets
Rock Wings Ltd. offers
2.75" FFAR & Wrap
Around rocket
launchers with single or
ripple firing options.

The following are items available and sold separately:
l Electro optical reflex sight
l 2.75" FFAR & Wrap Around rocket launchers
l 14" suspension release unit
