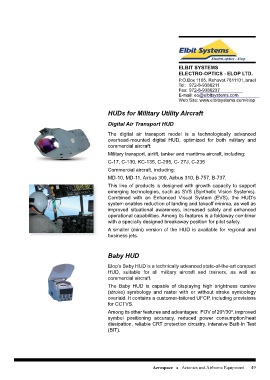

Page 49 - Israel Defense Directory 2013-14

ELBIT SYSTEMS
ELECTRO-OPTICS - ELOP LTD.
P.O.Box 1165, Rehovot 7611101,Israel
Tel: 972-8-9386211
Fax: 972-8-9386237
E-mail: eo@elbitsystems.com
Web Site: www.elbitsystems.com/elop

HUDs for Military Utility Aircraft

Digital Air Transport HUD

The digital air transport model is a technologically advanced
overhead-mounted digital HUD, optimized for both military and
commercial aircraft:
Military transport, airlift, tanker and maritime aircraft, including:
C-17, C-130, KC-135, C-295, C- 27J, C-235
Commercial aircraft, including:
MD-10, MD-11, Airbus 300, Airbus 310, B-757, B-737.
This line of products is designed with growth capacity to support
emerging technologies, such as SVS (Synthetic Vision Systems).
Combined with an Enhanced Visual System (EVS), the HUD’s
system enables reduction of landing and takeoff minima, as well as
improved situational awareness, increased safety and enhanced
operational capabilities. Among its features is a foldaway combiner
with a specially designed breakaway position for pilot safety.
A smaller (mini) version of the HUD is available for regional and
business jets.

Baby HUD

Elop’s Baby HUD is a technically advanced state-of-the-art compact
HUD, suitable for all military aircraft and trainers, as well as
commercial aircraft.
The Baby HUD is capable of displaying high brightness cursive
(stroke) symbology and raster with or without stroke symbology
overlaid. It contains a customer-tailored UFCP, including provisions
for CCTVS.
Among its other features and advantages: FOV of 20º/30º, improved
symbol positioning accuracy, reduced power consumption/heat
dissipation, reliable CRT protection circuitry, intensive Built-In Test
(BIT).
