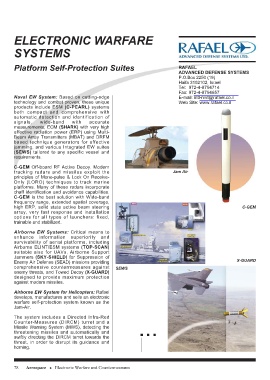

Page 78 - Israel Defense Directory 2013-14

ELECTRONIC WARFARE RAFAEL
SYSTEMS ADVANCED DEFENSE SYSTEMS
P.O.Box 2250 (19)
Platform Self-Protection Suites Haifa 3102102, Israel
Tel: 972-4-8794714
Naval EW System: Based on cutting-edge Fax: 972-4-8794657
technology and combat proven, these unique E-mail: intl-mkt@rafael.co.il
products include ESM (C-PEARL) systems Web Site: www.rafael.co.il
both compact and comprehensive with
automatic detection and identification of
signals, wide-band with accurate
measurements, ECM (SHARK) with very high
effective radiation power (ERP) using Multi-
Beam Array Transmitters (MBAT) and DRFM
based technique generators for effective
jamming, and various Integrated EW suites
(SEWS) tailored to any specific vessel and
requirements.

C-GEM Off-board RF Active Decoy. Modern Jam Air
tracking radars and missiles exploit the
principles of Mono-pulse & Lock On Receive- C-GEM
Only (LORO) techniques to track marine
platforms. Many of these radars incorporate
chaff identification and avoidance capabilities.
C-GEM is the best solution with Wide-band
frequency range, extended spatial coverage,
high ERP, solid state active beam steering
array, very fast response and installation
options for all types of launchers: fixed,
trainable and stabilized.

Airborne EW Systems: Critical means to X-GUARD
enhance information superiority and
survivability of aerial platforms, including SEWS
Airborne ELINT/ESM systems (TOP-SCAN)
suitable also for UAVs, Airborne Support
Jammers (SKY-SHIELD) for Suppression of
Enemy Air Defense (SEAD) missions providing
comprehensive countermeasures against
enemy threats, and Towed Decoy (X-GUARD)
designed to provide maximum protection
against modern missiles.

Airborne EW System for Helicopters: Rafael
develops, manufactures and sells an electronic
warfare self-protection system known as the
Jam-Air.

The system includes a Directed Infra-Red
Counter-Measures (DIRCM) turret and a
Missile Warning System (MWS), detecting the
threatening missiles and automatically and
swiftly directing the DIRCM turret towards the
threat, in order to disrupt its guidance and
homing.

78 Aerospace Electronic Warfare and Countermeasures
